Song Chuan PV Relay for Charger (110E)
Song Chuan PV Relay for Charger (110E)
SKU:SON-56cc4e
Enhance charging applications with the Song Chuan PV Relay (110E). Reliable, efficient, and compliant with industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Song Chuan PV Relay for Charger (110E)
$29.99
Quantity: 1
Claim Your Seller Account
Song Chuan PV Relay for Charger (110E)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Song Chuan PV Relay for Charger (110E) is a reliable and efficient solution for charging applications. With a compact design and precise engineering, this relay ensures seamless operation. Key features include a 1A contact configuration, maximum contact current of 32 A, and DC coil voltage ranging from 12 to 24 V. The relay meets strict industry standards including VDE and UL safety approvals, guaranteeing optimal performance and durability. Trusted by consumers and institutions alike, the Song Chuan PV Relay for Charger (110E) is a go-to choice for quality and dependability.
Product Specifications
Specifications Ac Dielectric Strength Between Contact And Coil
2500 V | 4000 V
Specifications Ac Dielectric Strength Between Open Contact
1500 V
Specifications Contact Configuration
1A
Specifications Contact Gap
2.1 mm
Specifications Contact Rating Resistive Load At 240 Volts V Ac V
32 A
Specifications Contact Rating Resistive Load Breaking At 240 Vol
16 A
Specifications Contact Rating Resistive Load Carrying At 240 Vol
32 A
Specifications Contact Rating Resistive Load Making At 240 Volts
16 A
Specifications Dc Coil Voltage
12 to 24 V
Specifications Dc Holding Power Consumption
0.29 W
Specifications Dc Power Consumption
2.8 W
Specifications Electrical Life Expectancy
1 x 104 min | 3 x 104 min
Specifications Maximum Allowable Contact Current
32 A
Specifications Mechanical Life Expectancy
5 x 105 min

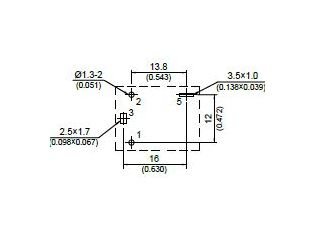

Specifications Outline Height
20.6 mm
Specifications Outline Length
21.5 mm
Specifications Outline Width
16 mm
Specifications Safety Approval
Association of Electrical Engineering (VDE) | Underwriters Laboratories (UL)
