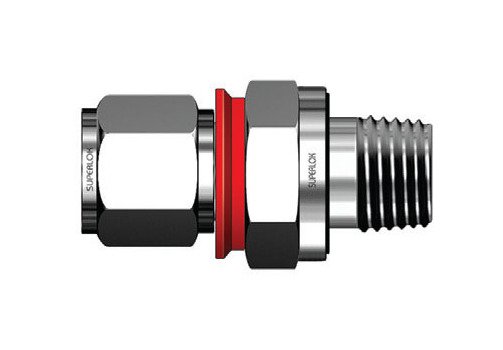

The SOPCI Series 1/4mm Tube Outside Diameter and 1/8 Inch Thread O-Seal Straight Pipe Connector Fitting is a precision-engineered solution that seamlessly connects fractional tubes to female NPT threads. Made from high-quality materials such as Alloy 625, Stainless Steel, and more, this fitting ensures durability and reliability in diverse environments. Its innovative i-Fitting® design, complete with a check ring for perfect compression, enhances safety, productivity, and cost-efficiency. Ideal for valve connections, this SOPCI fitting meets stringent industry standards while offering exceptional performance and ease of installation.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

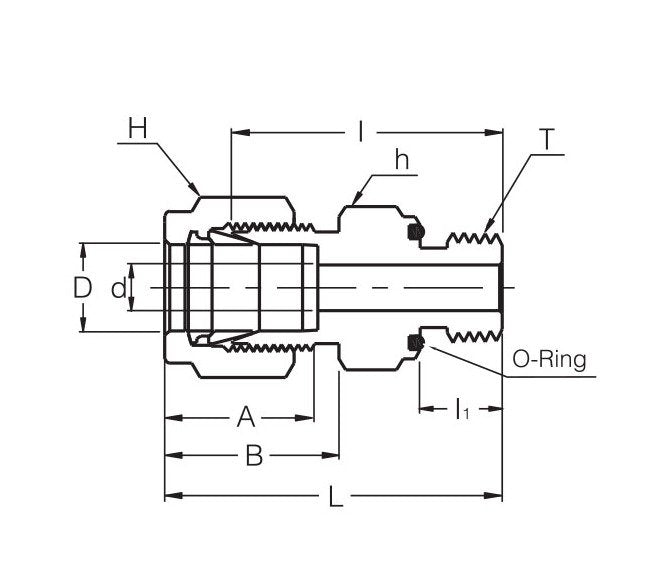

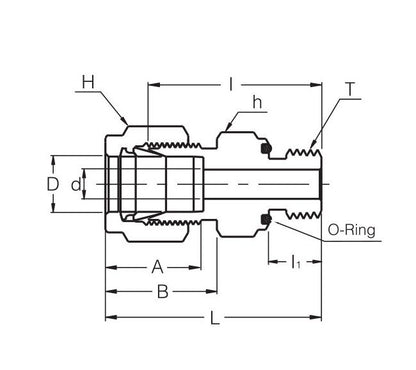

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
27.68 mm
Technical Specs Dimension I1
7.11 mm
Technical Specs Dimension L
35.05 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs O Ring Uniform Size Number
-111
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
