SOPCI Series O-Seal Straight Pipe Connector Fitting
SOPCI Series O-Seal Straight Pipe Connector Fitting
SKU:SOP-60b89e
Efficiently connect fractional tubes to female NPT threads with SOPCI Series Straight Pipe Connector Fitting for enhanced safety and productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SOPCI Series O-Seal Straight Pipe Connector Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SOPCI Series O-Seal Straight Pipe Connector Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

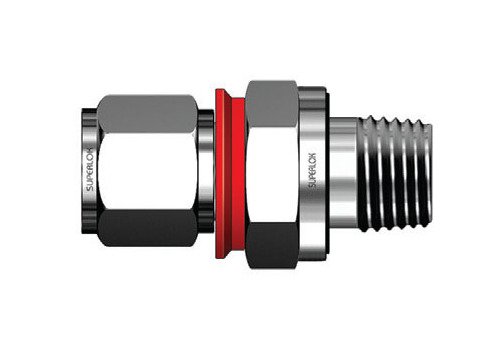

The SOPCI Series 3/8mm Tube OD and 1/2in Thread Straight Pipe Connector efficiently connects fractional tubes to female NPT threads. Crafted from top-quality materials like Alloy 625 and Stainless Steel, this innovatively designed fitting by BMT enhances safety, productivity, and cost-effectiveness. With a built-in gap gauge and industry-changing features, it ensures perfect compression, making it ideal for high-pressure and hazardous chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

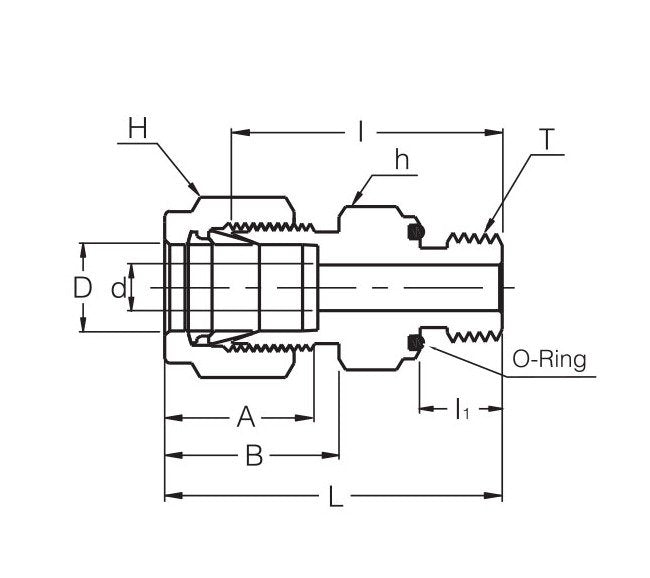

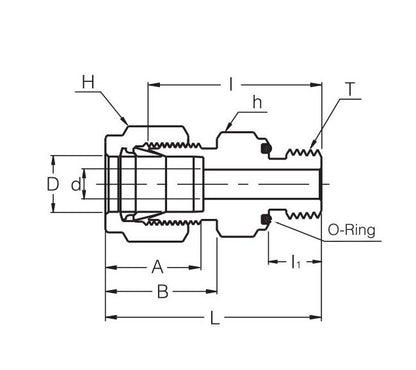

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
39.62 mm
Technical Specs Dimension I1
13.46 mm
Technical Specs Dimension L
46.99 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs O Ring Uniform Size Number
-212
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
