SOPCI Series O-Seal Straight Pipe Connector Fitting - 1/4in Tube to 1/4in NPT Thread

Name: SOPCI Series O-Seal Straight Pipe Connector Fitting - 1/4in Tube to 1/4in NPT Thread
Brand: Superlok-Mako Products LLC
SKU: SOP-716637
Price: 29.99 USD
Availability: OutOfStock

SKU:SOP-716637

High-quality SOPCI Series straight pipe connector fitting for 1/4in tubes to NPT threads, ensuring safety & efficiency.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

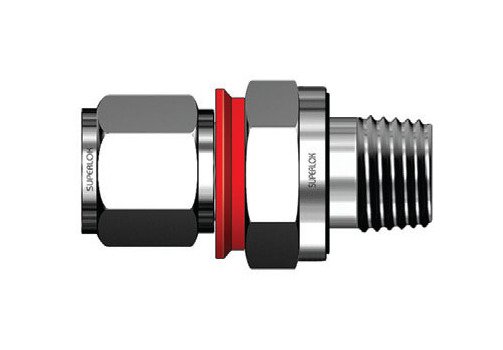

The SOPCI Series 1/4mm Tube OD and 1/4in Thread Size O-Seal Straight Pipe Connector Fitting is engineered for connecting fractional tubes to female NPT threads with precision. Made from high-quality materials like Alloy 625, Stainless Steel, and more, this fitting ensures durability and leak-free connections. Featuring i-Fitting® components and a patented design by BMT, it enhances safety in high-pressure environments, prevents over-tightening, and boosts installer productivity. With dimensions compliant with industry standards, this fitting is versatile and reliable for various applications.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

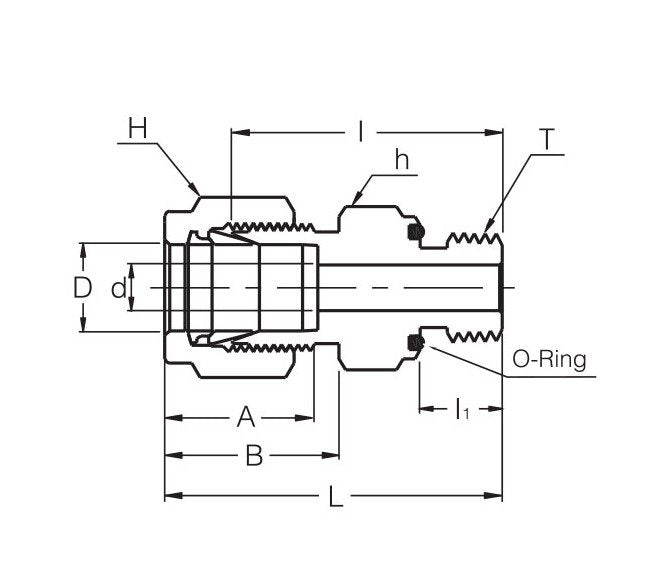

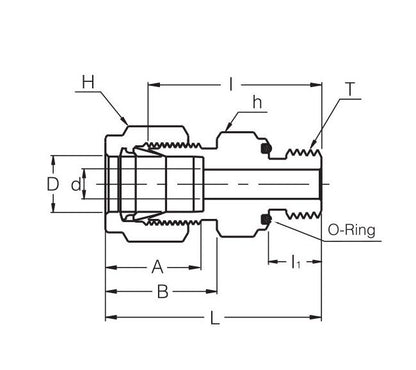

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Dimension A

15.24 mm

Technical Specs Dimension B

17.78 mm

Technical Specs Dimension I

30.98 mm

Technical Specs Dimension I1

9.65 mm

Technical Specs Dimension L

38.35 mm

Technical Specs Material

Technical Specs Minimum Dimension D

4.82 mm

Technical Specs O Ring Uniform Size Number

-113

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Thread Size T

1/4 in

Technical Specs Thread Type

National Pipe Thread (NPT)

Technical Specs Tube Outside Diameter D

1/4 in

Technical Specs Width Across Flat H

9/16 in
