SOPCI Series O-Seal Straight Pipe Connector Fitting
SOPCI Series O-Seal Straight Pipe Connector Fitting
SKU:SOP-02fad3
Precision O-Seal Straight Pipe Connector Fitting for secure and efficient tube-to-thread connections. Patented design ensures safety and productivity.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SOPCI Series O-Seal Straight Pipe Connector Fitting
$34.99
Quantity: 1
Claim Your Seller Account
SOPCI Series O-Seal Straight Pipe Connector Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

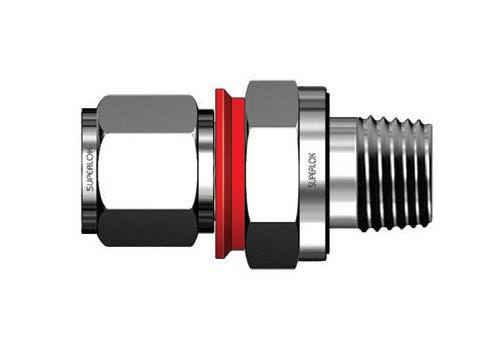

The SOPCI Series 3/8mm Tube OD & 3/8in Thread Straight Pipe Connector Fitting is a precision-engineered solution for connecting fractional tubes to female NPT threads. Crafted from high-quality materials like Alloy 625, Alloy 825, and Stainless Steel, this fitting features innovative i-Fitting® components ensuring optimal compression, installer safety, and productivity. With dimensions meeting industry standards and a patented design by BMT, this fitting is ideal for high-pressure and chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

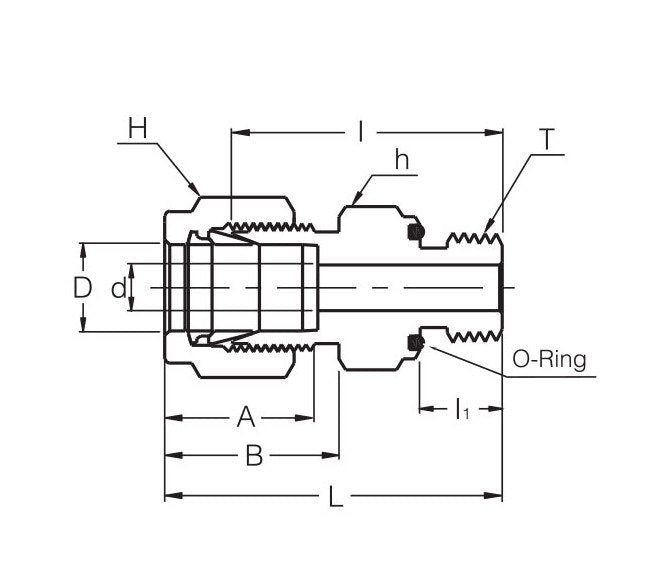

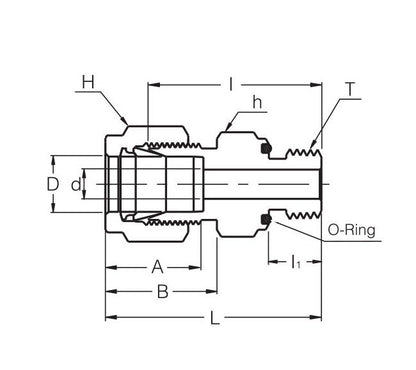

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
34.03 mm
Technical Specs Dimension I1
10.41 mm
Technical Specs Dimension L
41.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs O Ring Uniform Size Number
-116
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
