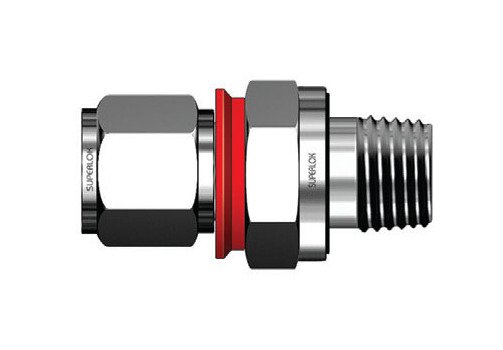

SOPCI Series O-Seal Straight Pipe Connector Fitting - 3/8mm Tube, 1/4in NPT Thread

Name: SOPCI Series O-Seal Straight Pipe Connector Fitting - 3/8mm Tube, 1/4in NPT Thread
Brand: Superlok-Mako Products LLC
SKU: SOP-b82884
Price: 24.99 USD
Availability: OutOfStock

SKU:SOP-b82884

Effortlessly connect fractional tubes to female NPT threads with SOPCI Series O-Seal Straight Pipe Connector Fitting.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SOPCI Series O-Seal Straight Pipe Connector Fitting is designed to effortlessly connect fractional tubes to female NPT threads. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliability in high-pressure and chemical environments. Featuring patented i-Fitting® components and a built-in gap gauge for perfect compression, this fitting enhances safety, productivity, and cost-efficiency. With dimensions meeting industry standards and a versatile standard size range from 1/4 to 1 inch, this fitting is a must-have for secure valve connections.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

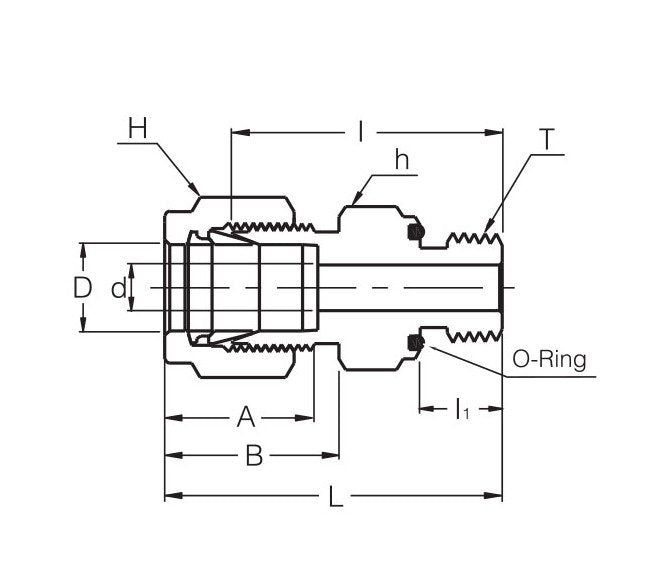

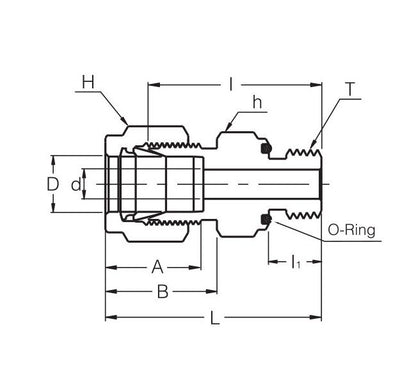

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Dimension A

16.76 mm

Technical Specs Dimension B

19.30 mm

Technical Specs Dimension I

32.51 mm

Technical Specs Dimension I1

9.65 mm

Technical Specs Dimension L

39.87 mm

Technical Specs Material

Technical Specs Minimum Dimension D

7.11 mm

Technical Specs O Ring Uniform Size Number

-113

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Thread Size T

1/4 in

Technical Specs Thread Type

National Pipe Thread (NPT)

Technical Specs Tube Outside Diameter D

3/8 in

Technical Specs Width Across Flat H

11/16 in
