SOSCI 1/2 in Tube O-Seal Straight Thread Connector Fitting

Name: SOSCI 1/2 in Tube O-Seal Straight Thread Connector Fitting
Brand: Superlok-Mako Products LLC
SKU: SOS-3640c3
Price: 27.99 USD
Availability: OutOfStock

SKU:SOS-3640c3

Enhance connections with precision and safety using the SOSCI 1/2 in Tube O-Seal Straight Thread Connector Fitting. Patented design for perfect compression and reliability.

$27.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

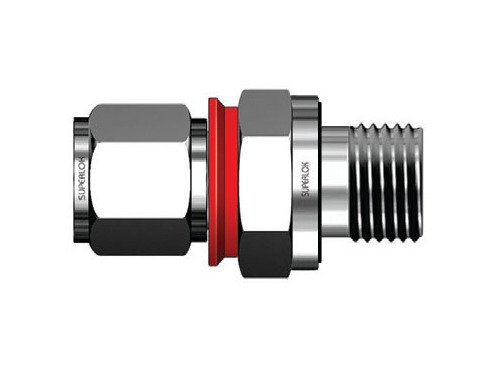

The SOSCI Series 1/2 Inch Tube O-Seal Straight Thread Connector Fitting is a top-tier solution for connecting fractional tubes to female straight threads. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and reliability. Its patented i-Fitting® design features a check ring for perfect compression, enhancing safety in high-pressure environments. With dimensions crafted for precision, this fitting optimizes productivity and cost-efficiency, making it a game-changer in the industry.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

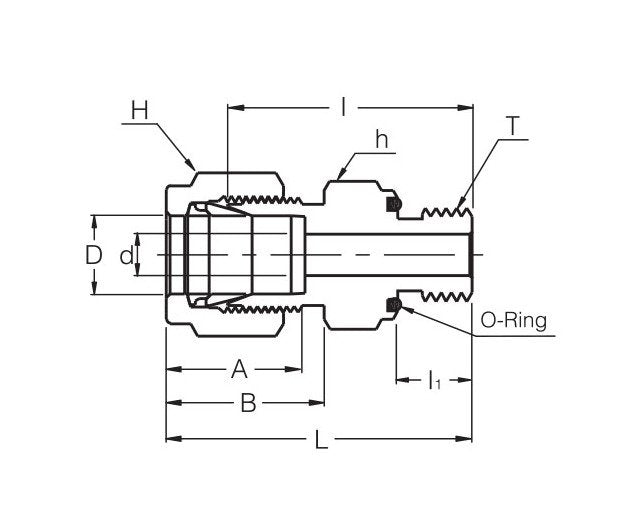

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Dimension A

22.86 mm

Technical Specs Dimension B

21.84 mm

Technical Specs Dimension I

35.81 mm

Technical Specs Dimension I1

11.93 mm

Technical Specs Dimension L

45.97 mm

Technical Specs Material

Technical Specs Minimum Dimension D

10.41 mm

Technical Specs O Ring Uniform Size Number

-116

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Straight Thread T U

3/4-16 mm

Technical Specs Tube Outside Diameter D

1/2 in

Technical Specs Width Across Flat H

7/8 in
