SOSCI 1 Inch O-Seal Straight Thread Connector Fitting

Name: SOSCI 1 Inch O-Seal Straight Thread Connector Fitting
Brand: Superlok-Mako Products LLC
SKU: SOS-6c6a3c
Price: 34.99 USD
Availability: OutOfStock

SKU:SOS-6c6a3c

Upgrade your industrial connections with the SOSCI 1 Inch O-Seal Straight Thread Connector Fitting for precise compression and enhanced safety in high-pressure environments.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

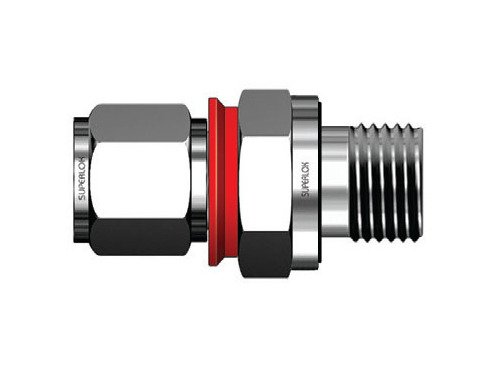

Enhance your industrial connections with the SOSCI 1 Inch O-Seal Straight Thread Connector Fitting. This precision-engineered fitting boasts a robust construction from top-grade materials like Alloy 625, Stainless Steel, and more. The patented i-Fitting® design ensures perfect compression, enhancing safety in high-pressure environments and increasing installer productivity. With dimensions adaptable to various sizes and end connections available on request, this fitting is a versatile solution for valve connections.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

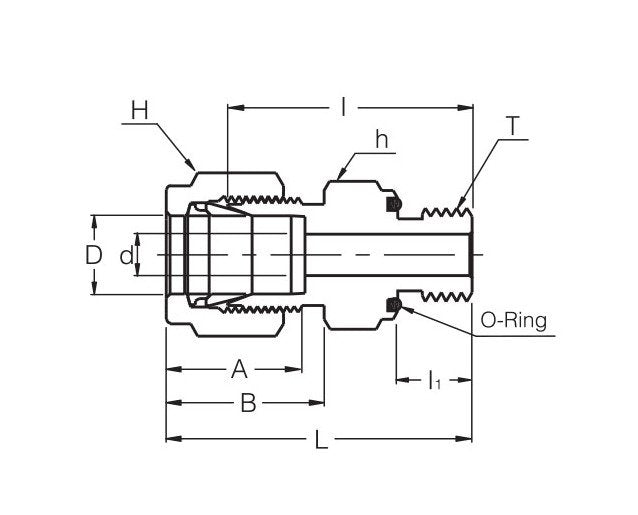

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Dimension A

31.24 mm

Technical Specs Dimension B

26.41 mm

Technical Specs Dimension I

45.97 mm

Technical Specs Dimension I1

14.22 mm

Technical Specs Dimension L

58.16 mm

Technical Specs Material

Technical Specs Minimum Dimension D

22.35 mm

Technical Specs O Ring Uniform Size Number

-219

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Straight Thread T U

1-5/16-12 mm

Technical Specs Tube Outside Diameter D

1 in

Technical Specs Width Across Flat H

1-1/2 in
