SOSCI 3/8in O-Seal Thread Fitting

Name: SOSCI 3/8in O-Seal Thread Fitting
Brand: Superlok-Mako Products LLC
SKU: SOS-ba6ca5
Price: 29.99 USD
Availability: OutOfStock

SKU:SOS-ba6ca5

Enhance efficiency and safety with the SOSCI Series 3/8in O-Seal Fitting for precise tube-to-thread connections.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

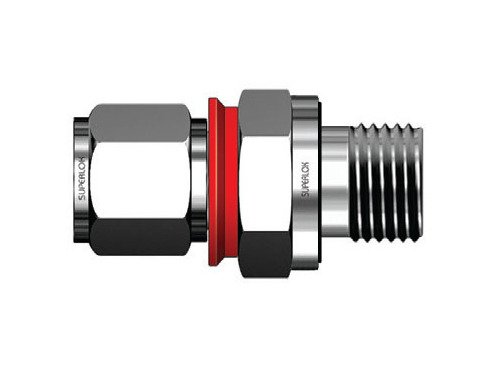

The SOSCI Series 3/8 Inch O-Seal Straight Thread Connector Fitting is engineered for precision and reliability. With a Tube Outside Diameter of 3/8 inches and a range of compatible materials including Stainless Steel and Carbon Steel, this fitting ensures secure connections for various applications. Its innovative design features i-Fitting® components for enhanced safety and ease of installation in high-pressure environments. The built-in check ring eliminates over-tightening risks, promoting efficiency and cost-effectiveness. Ideal for valve connections, the SOSCI fitting combines industry-leading performance with patented technology, setting new standards in fittings innovation.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

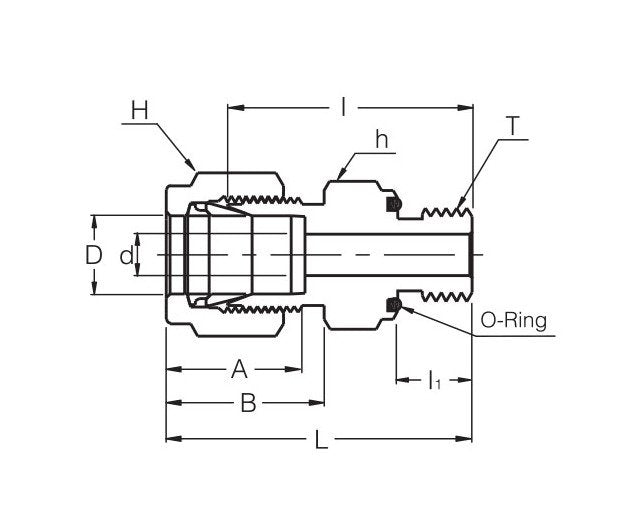

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Dimension A

16.76 mm

Technical Specs Dimension B

19.30 mm

Technical Specs Dimension I

35.05 mm

Technical Specs Dimension I1

11.93 mm

Technical Specs Dimension L

42.41 mm

Technical Specs Material

Technical Specs Minimum Dimension D

7.11 mm

Technical Specs O Ring Uniform Size Number

-114

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Straight Thread T U

9/16-18 mm

Technical Specs Tube Outside Diameter D

3/8 in

Technical Specs Width Across Flat H

11/16 in
