SOSCI 6mm Tube O-Seal Straight Thread Connector Fitting

Name: SOSCI 6mm Tube O-Seal Straight Thread Connector Fitting
Brand: Superlok-Mako Products LLC
SKU: SOS-6b879f
Price: 29.99 USD
Availability: OutOfStock

SKU:SOS-6b879f

Enhance safety & efficiency with the SOSCI 6mm Tube Connector Fitting. Patented design for perfect compression.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

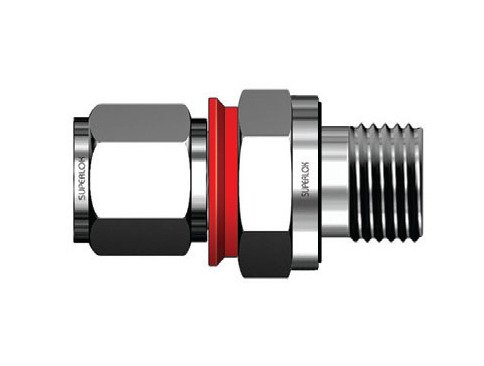

The SOSCI Series 6mm Tube O-Seal Straight Thread Connector Fitting is designed to seamlessly connect metric tubes to female straight threads. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliability. Featuring innovative i-Fitting® components, including a built-in check ring for precise compression, it enhances safety in high-pressure environments while streamlining installation, reducing costs, and increasing productivity.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

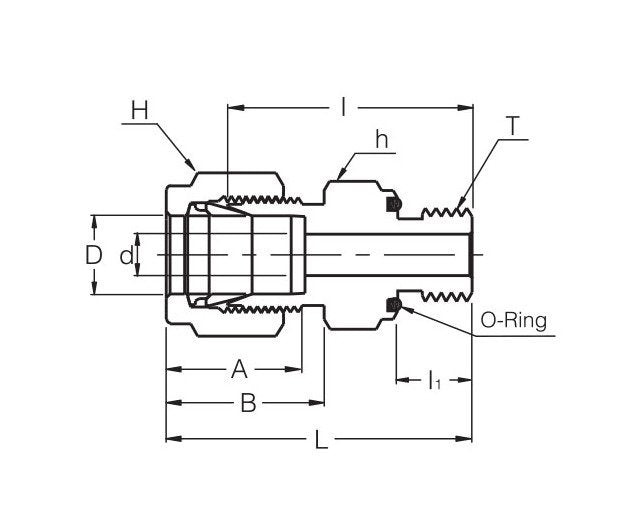

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Dimension A

15.2 mm

Technical Specs Dimension B

17.7 mm

Technical Specs Dimension I

31.0 mm

Technical Specs Dimension I1

10.4 mm

Technical Specs Dimension L

38.3 mm

Technical Specs Material

Technical Specs Minimum Dimension D

4.8 mm

Technical Specs O Ring Uniform Size Number

-111

Technical Specs Standard Size

6 to 25 mm

Technical Specs Straight Thread T U

7/16-20 mm

Technical Specs Tube Outside Diameter D

6 mm

Technical Specs Width Across Flat H

14 mm
