SOSCI Series 18mm O-Seal Straight Thread Connector Fitting
SOSCI Series 18mm O-Seal Straight Thread Connector Fitting
SKU:SOS-746a93
Enhance safety & productivity with the SOSCI 18mm O-Seal Connector Fitting. Perfect for valve connections.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SOSCI Series 18mm O-Seal Straight Thread Connector Fitting
$49.99
Quantity: 1
Claim Your Seller Account
SOSCI Series 18mm O-Seal Straight Thread Connector Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SOSCI Series 18mm Tube Outside Diameter O-Seal Straight Thread Connector Fitting is a precision-engineered solution that seamlessly connects Metric Tubes to Female Straight Threads. Crafted from premium materials including Alloy 625, Alloy 825, Carbon Steel, and more, this fitting ensures durability and reliability in demanding environments. Its innovative design featuring i-Fitting® components with a built-in check ring enhances safety, eliminates over-tightening issues, and boosts productivity. Ideal for valve connections, this fitting is a game-changer in the industry, offering efficiency, safety, and cost-effectiveness.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

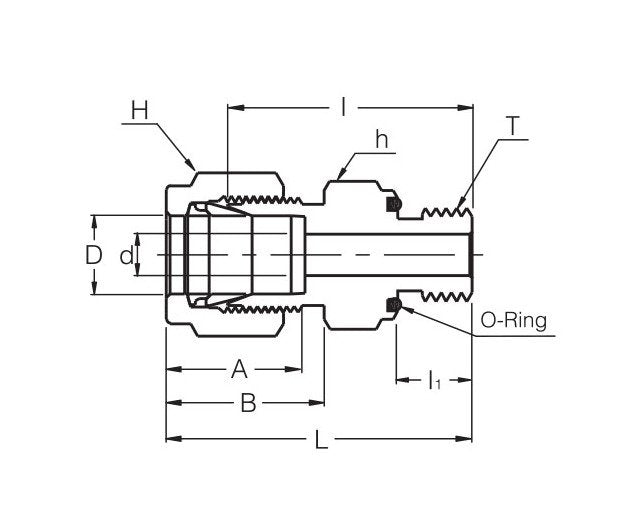

Technical Specs Dimension A
24.3 mm
Technical Specs Dimension B
21.8 mm
Technical Specs Dimension I
42.2 mm
Technical Specs Dimension I1
14.20 mm
Technical Specs Dimension L
52.3 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.1 mm
Technical Specs O Ring Uniform Size Number
-215
Technical Specs Standard Size
6 to 25 mm
Technical Specs Straight Thread T U
1-1/16-12 mm
Technical Specs Tube Outside Diameter D
18 mm
Technical Specs Width Across Flat H
28 mm
