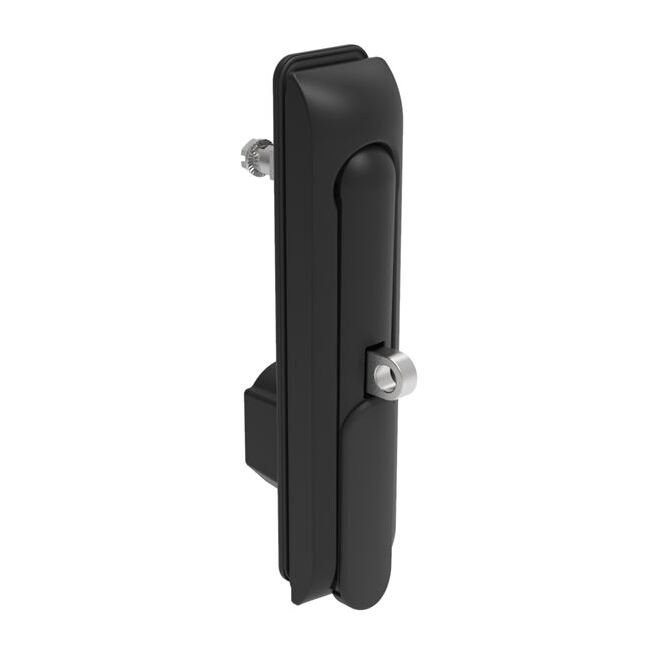

Southco H3 Swinghandle Multi-Point Locking System
Southco H3 Swinghandle Multi-Point Locking System
SKU:LOC-aa46d0
Secure and versatile Southco H3 Swinghandle Multi-Point System with padlock hasp and zinc alloy construction.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Southco H3 Swinghandle Multi-Point Locking System
$89.99
Quantity: 1
Claim Your Seller Account
Southco H3 Swinghandle Multi-Point Locking System
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco H3 Swinghandle Multi-Point System is a robust locking solution designed for both consumer and institutional use. With a large size of 150mm (5.9 in) and a padlock hasp, this swinghandle latch offers secure access restriction. It can be used with a linear actuator or as a single-point latch, providing versatility in application. Crafted from zinc alloy and powder-coated in black, this system is sealed for durability. With compliance to UL FTTA2/FTTA8 Type standards, including Type 1, 3, 3R, 3RX, 4, 4X, 12, 12K, and 5, this Southco product ensures high-quality performance in various environments.
Product Specifications
Specifications Access Restriction
Pad Lockable
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Black
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1,UL FTTA2 / FTTA8 Type 13,UL FTTA2 / FTTA8 Type 3,UL FTTA2 / FTTA8 Type 3R,UL FTTA2 / FTTA8 Type 3RX,UL FTTA2 / FTTA8 Type 4,UL FTTA2 / FTTA8 Type 4X,UL FTTA2 / FTTA8 Type 12,UL FTTA2 / FTTA8 Type 12K,UL FTTA2 / FTTA8 Type 5,UL FTTA
Specifications Finish
Powder Coat
Specifications Latching Points
Single or Three - Point
Specifications Locking Option
CH 751 Key DIN
Specifications Material
Zinc Alloy
Specifications Product Family
Multi-point Systems
Specifications Product Specs Link
Product Specifications
Specifications Sealed
Yes
Specifications Secondary Padlock Hasp
Yes
Specifications Short Description
Swinghandle Latch, Large Size - 150 mm (5.9 in), With Padlock Hasp, Use with Linear Actuator or as Single Point Latch, CH 751 Key DIN, Sealed, Zinc Alloy, Powder Coated, Black
Specifications Trade Drawing
Trade Drawing
Specifications Type
Large - 150 mm (5.9 in)
