Southco H3 Swinghandle Multi-Point System
Southco H3 Swinghandle Multi-Point System
SKU:LOC-5125ef
Secure your enclosures with the 150mm Southco H3 Swinghandle Multi-Point System. Padlock hasp, sealed zinc alloy, and satin finish.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Southco H3 Swinghandle Multi-Point System
$49.99
Quantity: 1
Claim Your Seller Account
Southco H3 Swinghandle Multi-Point System
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

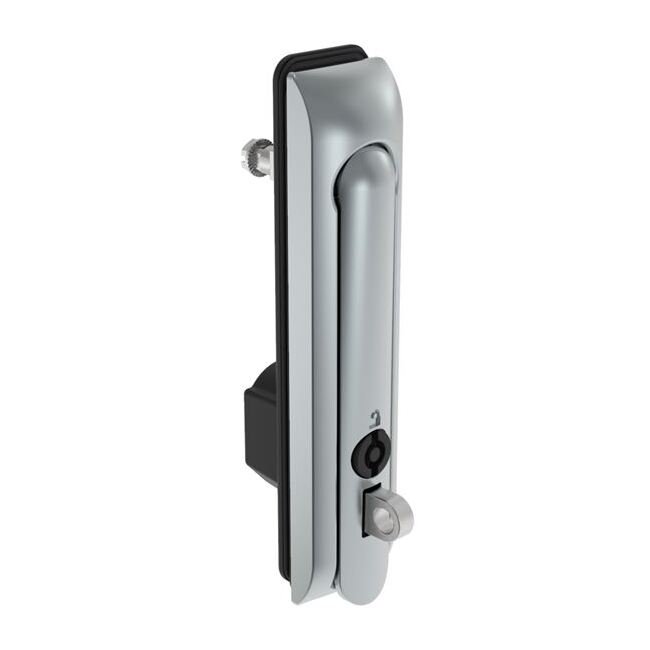

The Southco H3 Swinghandle Multi-Point System is a robust locking solution designed for both consumer and institutional applications. This large 150 mm (5.9 in) latch features a padlock hasp for enhanced security and can be used with a linear actuator or as a single point latch. Crafted from sealed zinc alloy with a satin chrome plated finish, this swinghandle latch offers durability and a sleek appearance. With a 5 mm double bit locking option and the flexibility of single or three-point latching, the Southco H3 is a versatile choice for various locking needs.
Product Specifications
Specifications Access Restriction
Pad Lockable
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Satin
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 13,UL FTTA2 / FTTA8 Type 5,UL FTTA2 / FTTA8 Type 1,UL FTTA2 / FTTA8 Type 12K,UL FTTA2 / FTTA8 Type 2,UL FTTA2 / FTTA8 Type 12
Specifications Finish
Chrome Plated
Specifications Latching Points
Single or Three - Point
Specifications Locking Option
5 mm Double Bit
Specifications Material
Zinc Alloy
Specifications Product Family
Multi-point Systems
Specifications Product Specs Link
Product Specifications
Specifications Sealed
Yes
Specifications Secondary Padlock Hasp
Yes
Specifications Short Description
Swinghandle Latch, Large Size - 150 mm (5.9 in), With Padlock Hasp, Use with Linear Actuator or as Single Point Latch, 5 mm Double Bit, Sealed, Zinc Alloy, Satin Chrome Plated
Specifications Trade Drawing
Trade Drawing
Specifications Type
Large - 150 mm (5.9 in)
