Southco H3 Swinghandle Multi-Point System
Southco H3 Swinghandle Multi-Point System
SKU:LOC-7307f0
Secure Southco H3 Swinghandle Multi-Point System for versatile access control with padlock hasp. Durable zinc alloy, satin chrome plated. Use with linear actuator or as single-point latch. CH 300 Key DIN locking option.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Southco H3 Swinghandle Multi-Point System
$59.99
Quantity: 1
Claim Your Seller Account
Southco H3 Swinghandle Multi-Point System
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

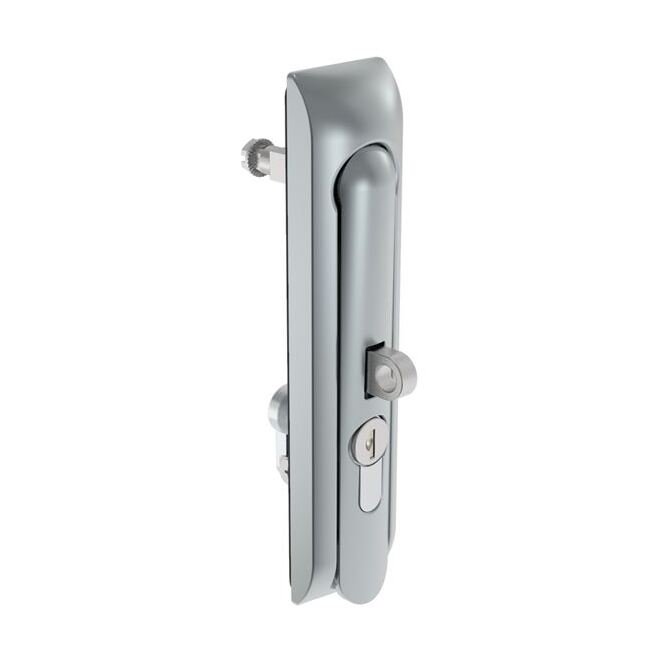

The Southco H3 Swinghandle Multi-Point System is designed for secure access control in institutional and consumer applications. This large-size latch, measuring 150mm (5.9 in), features a padlock hasp for additional security. It can be used with a linear actuator or as a single-point latch, providing versatile functionality. Constructed from zinc alloy and satin chrome plated, this swinghandle system offers durability and a sleek appearance. With the CH 300 Key DIN locking option and non-sealed design, this product ensures reliable performance in various environments.
Product Specifications
Specifications Access Restriction
Pad Lockable
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Satin
Specifications Finish
Chrome Plated
Specifications Latching Points
Single or Three - Point
Specifications Locking Option
CH 300 Key DIN
Specifications Material
Zinc Alloy
Specifications Product Family
Multi-point Systems
Specifications Product Specs Link
Product Specifications
Specifications Sealed
No
Specifications Secondary Padlock Hasp
Yes
Specifications Short Description
Swinghandle Latch, Large Size - 150 mm (5.9 in), With Padlock Hasp, Use with Linear Actuator or as Single Point Latch, CH 300 Key DIN, Non-Sealed, Zinc Alloy, Satin Chrome Plated
Specifications Trade Drawing
Trade Drawing
Specifications Type
Large - 150 mm (5.9 in)
