Southco H3 Swinghandle Multi-Point System
Southco H3 Swinghandle Multi-Point System
SKU:LOC-103923
Secure large swinghandle latch system with padlock hasp, zinc alloy construction, satin chrome finish, UL & Bellcore compliant
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Southco H3 Swinghandle Multi-Point System
$39.99
Quantity: 1
Claim Your Seller Account
Southco H3 Swinghandle Multi-Point System
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

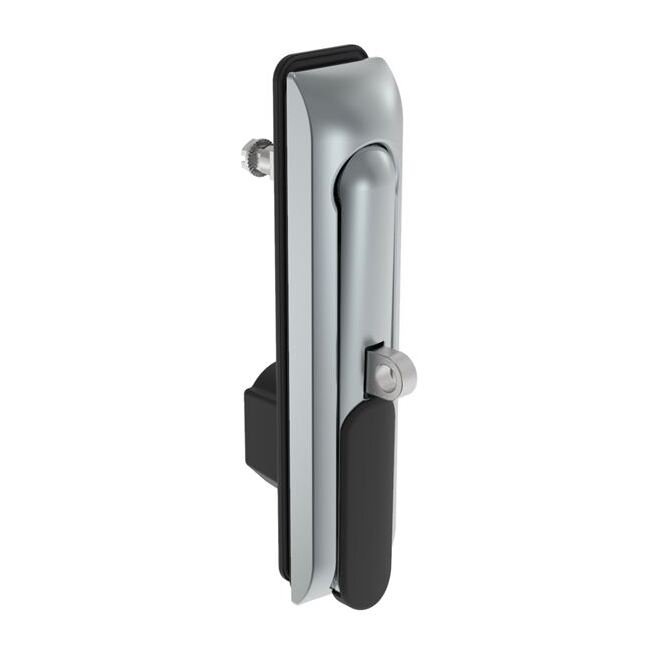

The Southco H3 Swinghandle Multi-Point System offers enhanced security and access control for cabinets and enclosures. This large-sized swinghandle latch, with a 150 mm length, features a padlock hasp for extra security. It can be utilized with a linear actuator or as a single-point latch, providing flexibility in application. Crafted from sealed zinc alloy with a satin chrome plated finish, this swinghandle system is not only durable but also aesthetically pleasing. With compliance to UL FTTA2/FTTA8 Type standards and the Bellcore 216 Key DIN locking option, this solution ensures reliable performance in diverse environments.
Product Specifications
Specifications Access Restriction
Pad Lockable
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Satin
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 5,UL FTTA2 / FTTA8 Type 12,UL FTTA2 / FTTA8 Type 1,UL FTTA2 / FTTA8 Type 12K,UL FTTA2 / FTTA8 Type 13,UL FTTA2 / FTTA8 Type 2
Specifications Finish
Chrome Plated
Specifications Latching Points
Single or Three - Point
Specifications Locking Option
Bellcore 216 Key DIN
Specifications Material
Zinc Alloy
Specifications Product Family
Multi-point Systems
Specifications Product Specs Link
Product Specifications
Specifications Sealed
Yes
Specifications Secondary Padlock Hasp
Yes
Specifications Short Description
Swinghandle Latch, Large Size - 150 mm (5.9 in), With Padlock Hasp, Use with Linear Actuator or as Single Point Latch, Bellcore 216 Key DIN, Sealed, Zinc Alloy, Satin Chrome Plated
Specifications Trade Drawing
Trade Drawing
Specifications Type
Large - 150 mm (5.9 in)
