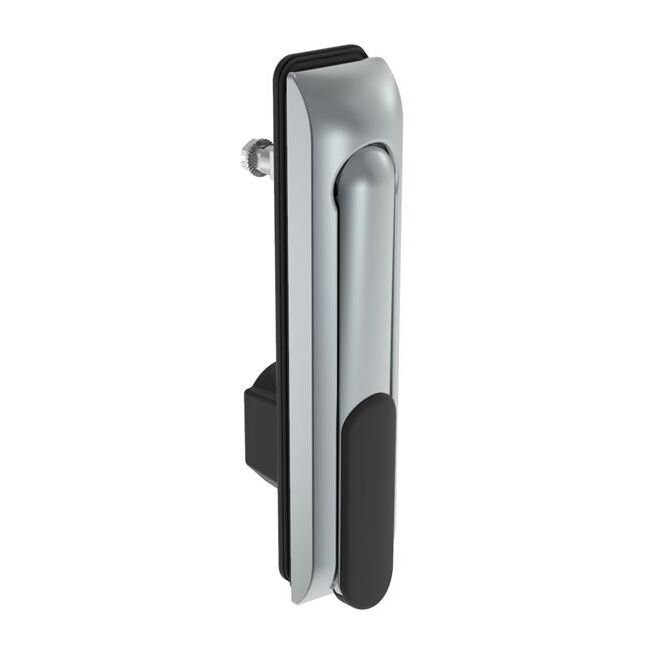

Southco H3 Swinghandle Multi-Point System - Satin Chrome Plated
Southco H3 Swinghandle Multi-Point System - Satin Chrome Plated
SKU:LOC-0fd4e5
Enhance security with the Southco H3 Swinghandle Multi-Point System. Large 150mm (5.9 in) latch, Zinc Alloy, Satin Chrome Plated.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Southco H3 Swinghandle Multi-Point System - Satin Chrome Plated
$39.99
Quantity: 1
Claim Your Seller Account
Southco H3 Swinghandle Multi-Point System - Satin Chrome Plated
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance security with the Southco H3 Swinghandle Multi-Point System. This large 150mm (5.9 in) latch, made from sealed Zinc Alloy and finished in Satin Chrome, ensures durability and style. Designed for use with a linear actuator and equipped with a 3mm Double Bit DIN lock, this swinghandle system offers reliable access control. With a single or three-point latching mechanism and a sleek design, this product meets UL FTTA2/FTTA8 Types 1, 2, 5, 12, and 13 specifications, making it ideal for industrial and commercial applications where security is paramount.
Product Specifications
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Satin
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 12K,UL FTTA2 / FTTA8 Type 1,UL FTTA2 / FTTA8 Type 2,UL FTTA2 / FTTA8 Type 5,UL FTTA2 / FTTA8 Type 13,UL FTTA2 / FTTA8 Type 12
Specifications Finish
Chrome Plated
Specifications Latching Points
Single or Three - Point
Specifications Locking Option
3 mm Double Bit DIN
Specifications Material
Zinc Alloy
Specifications Product Family
Multi-point Systems
Specifications Product Specs Link
Product Specifications
Specifications Sealed
Yes
Specifications Secondary Padlock Hasp
No
Specifications Short Description
Swinghandle Latch, Large Size - 150 mm (5.9 in), Without Padlock Hasp, Use with Linear Actuator, 3 mm Double Bit DIN, Sealed, Zinc Alloy, Satin Chrome Plated
Specifications Trade Drawing
Trade Drawing
Specifications Type
Large - 150 mm (5.9 in)
