Southco M1 Compression Latch - Large Size, 316 Stainless Steel
Southco M1 Compression Latch - Large Size, 316 Stainless Steel
SKU:LOC-8abede
Southco M1 Compression Latch - Large Size, 316 Stainless Steel, No Restriction, Electropolished Finish
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Southco M1 Compression Latch - Large Size, 316 Stainless Steel
$45.99
Quantity: 1
Claim Your Seller Account
Southco M1 Compression Latch - Large Size, 316 Stainless Steel
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

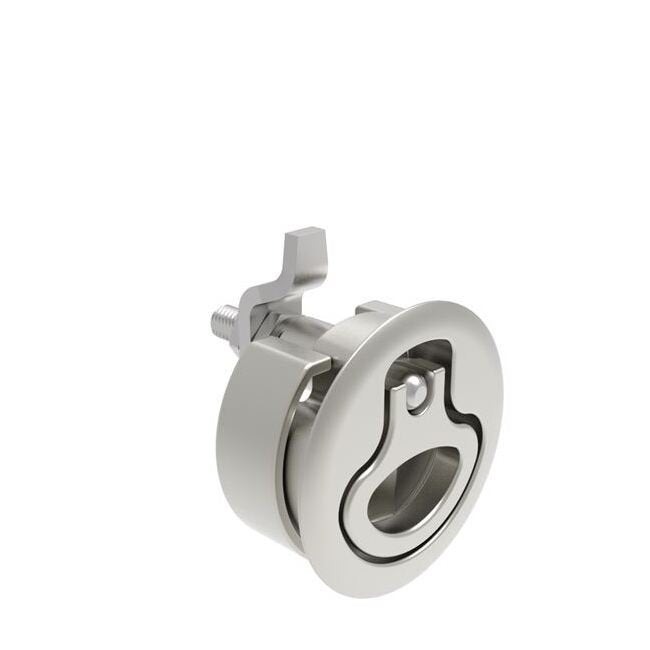

The Southco M1 Compression Latch is designed for versatility and durability, suitable for a wide range of applications. This large-size latch accommodates door thickness ranging from 2mm to 12mm and offers a comfortable grip of 34mm to 48mm or 60mm to 75mm. Crafted from high-quality 316 stainless steel with an electropolished finish, this latch ensures reliability and corrosion resistance. With a D handle style and no access restriction, it provides ease of use and security.
Product Specifications
Specifications Access Restriction
No Restriction
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Finish
Electropolished
Specifications Grip Maximum
40
Specifications Grip Maximum Cam Reversed
64
Specifications Grip Minimum
27
Specifications Grip Minimum Cam Reversed
51
Specifications Handle Style
D Handle Style
Specifications Material
316 Stainless Steel
Specifications Max Outer Panel Thickness
12
Specifications Min Outer Panel Thickness
2
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Compression Latch, Large Size, No Restriction, 2 - 12mm (.075 - . 475 in) Door thickness, 34 - 48mm or 60 -75mm (1.34 - 1.89 in or 2.36 - 2.95 in) Grip, 316 Stainless Steel, Electropolished
Specifications Size Series
Large Size
Specifications Trade Drawing
Trade Drawing
