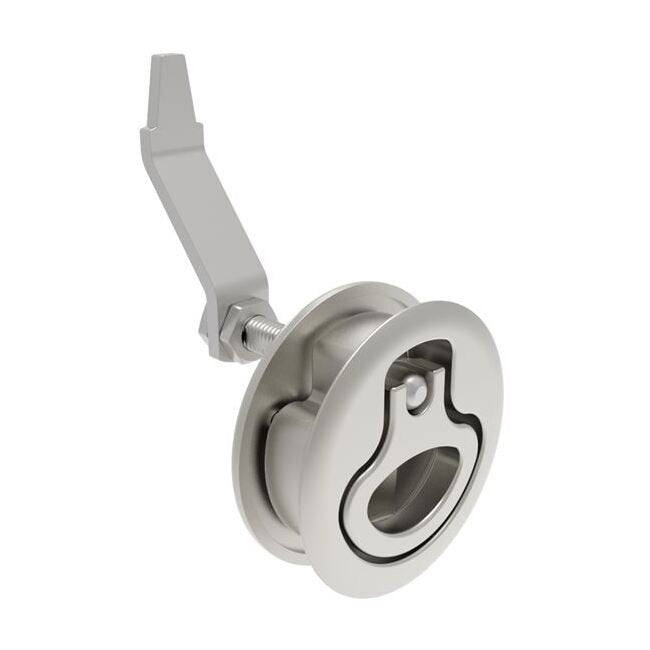

Southco M1 Compression Latch - Large Size, 316 Stainless Steel, Electropolished
Southco M1 Compression Latch - Large Size, 316 Stainless Steel, Electropolished
SKU:LOC-fa4c0d
Southco M1 Compression Latch - Large Size, 316 Stainless Steel, Electropolished. Accommodates door thicknesses from 18.5mm to 29mm, grip range of 23.5mm to 88mm. UL FTTA2/FTTA8 Type 1 compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Southco M1 Compression Latch - Large Size, 316 Stainless Steel, Electropolished
$49.99
Quantity: 1
Claim Your Seller Account
Southco M1 Compression Latch - Large Size, 316 Stainless Steel, Electropolished
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco M1 Compression Latch is designed for large-sized applications with a sturdy construction of 316 Stainless Steel, ensuring durability and corrosion resistance. With a grip ranging from 23.5mm to 88mm, this latch accommodates various door thicknesses. The Electropolished finish not only enhances the latch's appearance but also provides added protection against environmental elements. Compliant with UL specifications FTTA2/FTTA8 Type 1, this compression latch guarantees reliability and performance for a wide range of industrial and institutional uses.
Product Specifications
Specifications Access Restriction
No Restriction
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Finish
Electropolished
Specifications Grip Maximum
28
Specifications Grip Maximum Cam Reversed
76
Specifications Grip Minimum
21
Specifications Grip Minimum Cam Reversed
63
Specifications Handle Style
D Handle Style
Specifications Material
316 Stainless Steel
Specifications Max Outer Panel Thickness
29
Specifications Min Outer Panel Thickness
18.5
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Compression Latch, Large Size, No Restriction, 18.5 - 29mm (.073 - 1.14 in) Door thickness, 23.5 - 35mm or 74 -88mm (.92 - 1.38 in or 2.91 - 3.47 in) Grip, 316 Stainless Steel, Electropolished
Specifications Size Series
Large Size
Specifications Trade Drawing
Trade Drawing
