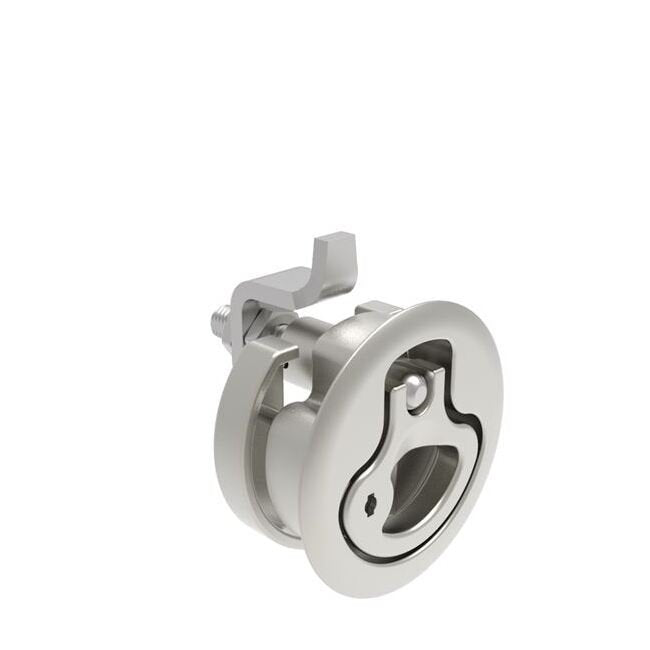

Southco M1 Compression Latch - Large Size, Locking
Southco M1 Compression Latch - Large Size, Locking
SKU:LOC-73a0bb
Secure large compression latch with key-locking feature, 316 stainless steel construction, and Electropolished finish. Meets UL FTTA2/FTTA8 Type 1 standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Southco M1 Compression Latch - Large Size, Locking
$39.99
Quantity: 1
Claim Your Seller Account
Southco M1 Compression Latch - Large Size, Locking
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco M1 Compression Latch in large size is designed for security and durability. Featuring a key-locking access restriction and an electropolished finish, this latch is suitable for doors with a thickness ranging from 12mm to 22.5mm. With a 316 stainless steel construction, it offers exceptional corrosion resistance. The latch's grip ranges from 23.5mm to 35mm, catering to various panel thicknesses. Compliant with UL FTTA2/FTTA8 Type 1 specifications, this compression latch ensures reliable performance and meets stringent industry standards.
Product Specifications
Specifications Access Restriction
Key Locking
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Finish
Electropolished
Specifications Grip Maximum
28
Specifications Grip Maximum Cam Reversed
76
Specifications Grip Minimum
21
Specifications Grip Minimum Cam Reversed
63
Specifications Handle Style
D Handle Style
Specifications Head Style
Locking
Specifications Material
316 Stainless Steel
Specifications Max Outer Panel Thickness
22.5
Specifications Min Outer Panel Thickness
12
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Compression Latch, Large Size, Locking, 12 - 22.5mm (.475 - . 885 in) Door thickness, 23.5 - 35mm or 74 -88mm (.92 - 1.38 in or 2.91 - 3.47 in) Grip, 316 Stainless Steel, Electropolished
Specifications Size Series
Large Size
Specifications Trade Drawing
Trade Drawing
