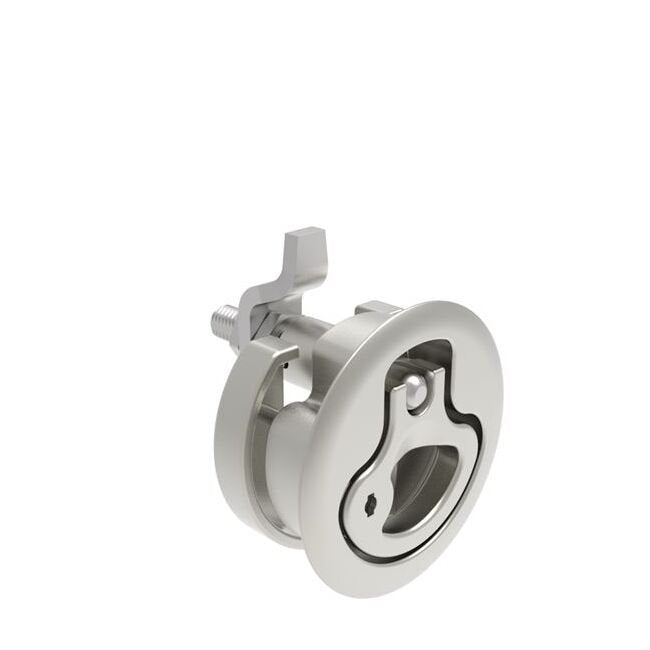

Southco M1 Compression Latch, Large Size, Locking, Stainless Steel
Southco M1 Compression Latch, Large Size, Locking, Stainless Steel
SKU:LOC-2aa39f
Secure and durable Southco M1 Compression Latch for industrial applications, key-locking, 316 Stainless Steel, UL FTTA2/FTTA8 Type 1 compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Southco M1 Compression Latch, Large Size, Locking, Stainless Steel
$59.99
Quantity: 1
Claim Your Seller Account
Southco M1 Compression Latch, Large Size, Locking, Stainless Steel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco M1 Compression Latch is designed for industrial applications requiring secure fastening and durability. This large-size latch is key-locking, suitable for door thicknesses ranging from 12mm to 22.5mm. With a 316 stainless steel construction and electropolished finish, it offers exceptional corrosion resistance and a bright appearance. The latch features a grip range of 34mm to 48mm or 60mm to 75mm, offering versatility in installation. Ideal for use in environments requiring UL FTTA2/FTTA8 Type 1 compliance, this compression latch ensures reliable access restriction and performance.
Product Specifications
Specifications Access Restriction
Key Locking
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Finish
Electropolished
Specifications Grip Maximum
40
Specifications Grip Maximum Cam Reversed
64
Specifications Grip Minimum
27
Specifications Grip Minimum Cam Reversed
51
Specifications Handle Style
D Handle Style
Specifications Head Style
Locking
Specifications Material
316 Stainless Steel
Specifications Max Outer Panel Thickness
22.5
Specifications Min Outer Panel Thickness
12
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Compression Latch, Large Size, Locking, 12 - 22.5mm (.475 - . 885 in) Door thickness, 34 - 48mm or 60 -75mm (1.34 - 1.89 in or 2.36 - 2.95 in) Grip, 316 Stainless Steel, Electropolished
Specifications Size Series
Large Size
Specifications Trade Drawing
Trade Drawing
