Southco M1 Compression Latches - Large Size, Locking
Southco M1 Compression Latches - Large Size, Locking
SKU:LOC-34cb33
Secure large doors with the Southco M1 Compression Latch, made from durable 316 Stainless Steel with a key locking mechanism. Compliant with UL FTTA2 & FTTA8 Type 1 standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Southco M1 Compression Latches - Large Size, Locking
$45.99
Quantity: 1
Claim Your Seller Account
Southco M1 Compression Latches - Large Size, Locking
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

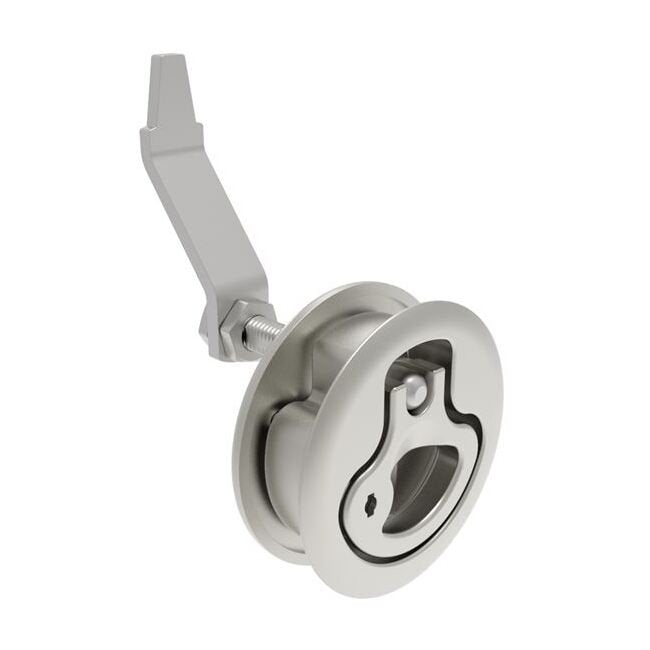

The Southco M1 Compression Latch is designed for large-size applications, featuring a key locking mechanism for access restriction. Crafted from 316 Stainless Steel with an electropolished finish, this latch accommodates door thickness ranging from 18.5mm to 29mm. With a grip range of 23.5mm to 35mm (or 74mm to 88mm), it offers a secure locking solution suitable for various industrial environments. Meet UL FTTA2 / FTTA8 Type 1 compliance standards with this durable and reliable compression latch.
Product Specifications
Specifications Access Restriction
Key Locking
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Finish
Electropolished
Specifications Grip Maximum
28
Specifications Grip Maximum Cam Reversed
76
Specifications Grip Minimum
21
Specifications Grip Minimum Cam Reversed
63
Specifications Handle Style
D Handle Style
Specifications Material
316 Stainless Steel
Specifications Max Outer Panel Thickness
29
Specifications Min Outer Panel Thickness
18.5
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Compression Latch, Large Size, Locking, 18.5 - 29mm (.073 - 1.14 in) Door thickness, 23.5 - 35mm or 74 -88mm (.92 - 1.38 in or 2.91 - 3.47 in) Grip, 316 Stainless Steel, Electropolished
Specifications Size Series
Large Size
Specifications Trade Drawing
Trade Drawing
