Southco M1 Compression Latches - Medium Size Locking Latch
Southco M1 Compression Latches - Medium Size Locking Latch
SKU:LOC-cd0933
Key-locking medium-size compression latch, 316 Stainless Steel, Electropolished finish, UL FTTA2/FTTA8 Type 1 compliant
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Southco M1 Compression Latches - Medium Size Locking Latch
$49.99
Quantity: 1
Claim Your Seller Account
Southco M1 Compression Latches - Medium Size Locking Latch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

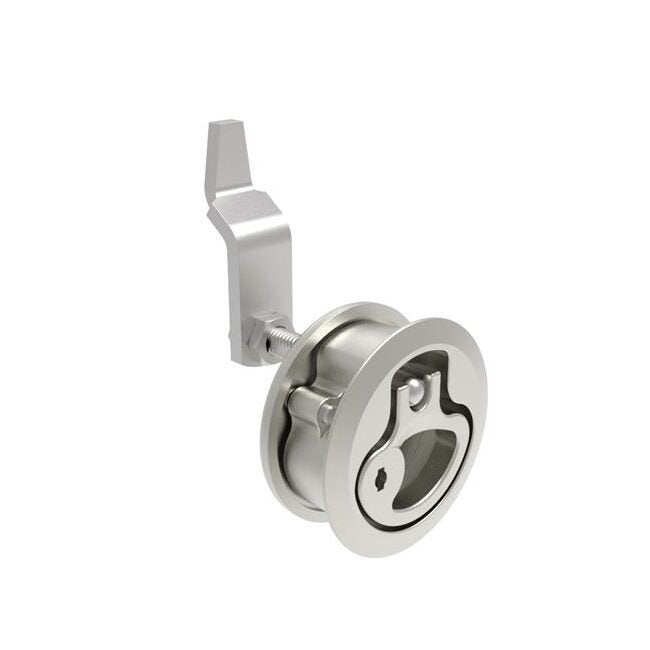

The Southco M1 Compression Latches feature a medium size design suitable for door thickness ranging from 18.5mm to 29mm. With a sturdy construction of 316 stainless steel and a bright electropolished finish, these latches offer durability and a sleek appearance. The key-locking mechanism ensures access restriction, meeting UL FTTA2/FTTA8 Type 1 compliance specifications. The grip ranges from 27mm to 40mm in the standard position and up to 51mm to 64mm in the cam reversed configuration, providing versatility in installation.
Product Specifications
Specifications Access Restriction
Key Locking
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Finish
Electropolished
Specifications Grip Maximum
40
Specifications Grip Maximum Cam Reversed
64
Specifications Grip Minimum
27
Specifications Grip Minimum Cam Reversed
51
Specifications Handle Style
D Handle Style
Specifications Material
316 Stainless Steel
Specifications Max Outer Panel Thickness
29
Specifications Min Outer Panel Thickness
18.5
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Compression Latch, Medium Size, Locking, 18.5 - 29mm (.073 - 1.14 in) Door thickness, 27 - 40mm or 51 -64mm (1.06 - 1.57 in or 2.00 - 2.52 in) Grip, 316 Stainless Steel, Electropolished
Specifications Size Series
Medium Size
Specifications Trade Drawing
Trade Drawing
