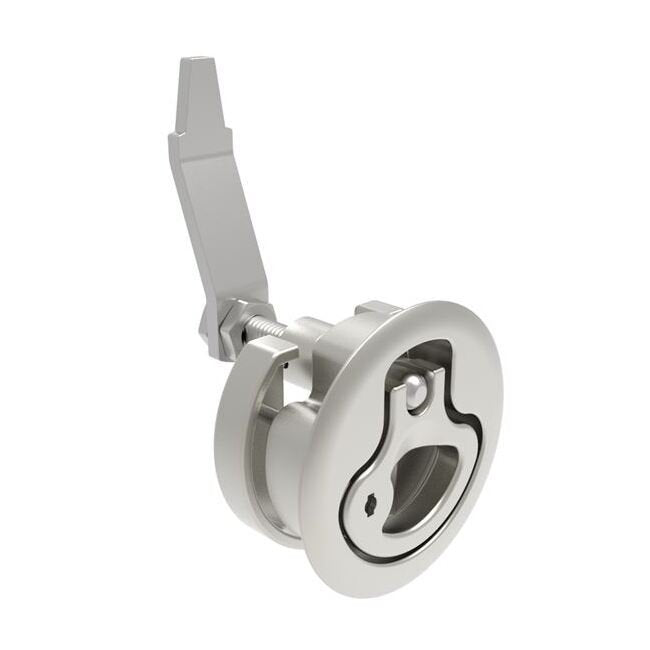

Southco M1 Large Size Compression Latch - Locking, 316 Stainless Steel
Southco M1 Large Size Compression Latch - Locking, 316 Stainless Steel
SKU:LOC-e44a71
Secure Southco M1 Compression Latch - Large Size, Locking, 316 Stainless Steel, UL FTTA2/FTTA8 Type 1 Compliant
Regular price
$55.99
Regular price
Sale price
$55.99
Unit price
per
Initiate Order
Southco M1 Large Size Compression Latch - Locking, 316 Stainless Steel
$55.99
Quantity: 1
Claim Your Seller Account
Southco M1 Large Size Compression Latch - Locking, 316 Stainless Steel
$55.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco M1 Compression Latch is designed for security and durability, featuring a large size suitable for door thickness ranging from 12mm to 22.5mm. This key-locking latch offers enhanced access restriction and complies with UL FTTA2/FTTA8 Type 1 specifications. Crafted from 316 Stainless Steel with an electropolished finish, it ensures corrosion resistance and a bright color appearance. With a grip range of 34mm to 75mm, this D-handle style latch provides a secure locking mechanism for various panel thicknesses, making it ideal for industrial and institutional applications.
Product Specifications
Specifications Access Restriction
Key Locking
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Finish
Electropolished
Specifications Grip Maximum
40
Specifications Grip Maximum Cam Reversed
64
Specifications Grip Minimum
27
Specifications Grip Minimum Cam Reversed
51
Specifications Handle Style
D Handle Style
Specifications Head Style
Locking
Specifications Material
316 Stainless Steel
Specifications Max Outer Panel Thickness
22.5
Specifications Min Outer Panel Thickness
12
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Compression Latch, Large Size, Locking, 12 - 22.5mm (.475 - . 885 in) Door thickness, 34 - 48mm or 60 -75mm (1.34 - 1.89 in or 2.36 - 2.95 in) Grip, 316 Stainless Steel, Electropolished
Specifications Size Series
Large Size
Specifications Trade Drawing
Trade Drawing
