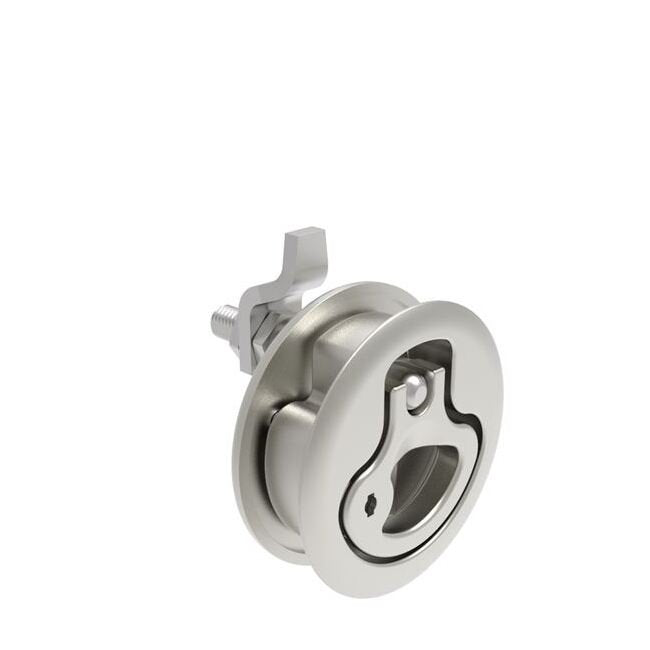

Southco M1 Stainless Steel Compression Latch, Large Size
Southco M1 Stainless Steel Compression Latch, Large Size
SKU:LOC-1f5794
Secure large panel doors with Southco M1 Stainless Steel Compression Latch. Key-locking, 316 stainless steel, UL FTTA2/FTTA8 Type 1 compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Southco M1 Stainless Steel Compression Latch, Large Size
$49.99
Quantity: 1
Claim Your Seller Account
Southco M1 Stainless Steel Compression Latch, Large Size
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco M1 Compression Latch, featuring a large size design, offers robust security with key locking access restriction. Crafted from high-grade 316 stainless steel and electropolished finish, this latch is ideal for panel doors with thickness ranging from 18.5mm to 29mm. With a comfortable D handle style, the grip ranges from 34mm to 75mm, providing a secure and ergonomic solution. Certified compliant with UL FTTA2/FTTA8 Type 1 standards, this compression latch ensures durability, reliability, and performance in demanding environments.
Product Specifications
Specifications Access Restriction
Key Locking
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Finish
Electropolished
Specifications Grip Maximum
40
Specifications Grip Maximum Cam Reversed
64
Specifications Grip Minimum
27
Specifications Grip Minimum Cam Reversed
51
Specifications Handle Style
D Handle Style
Specifications Material
316 Stainless Steel
Specifications Max Outer Panel Thickness
29
Specifications Min Outer Panel Thickness
18.5
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Compression Latch, Large Size, Locking, 18.5 - 29mm (.073 - 1.14 in) Door thickness, 34 - 48mm or 60 -75mm (1.34 - 1.89 in or 2.36 - 2.95 in) Grip, 316 Stainless Steel, Electropolished
Specifications Size Series
Large Size
Specifications Trade Drawing
Trade Drawing
