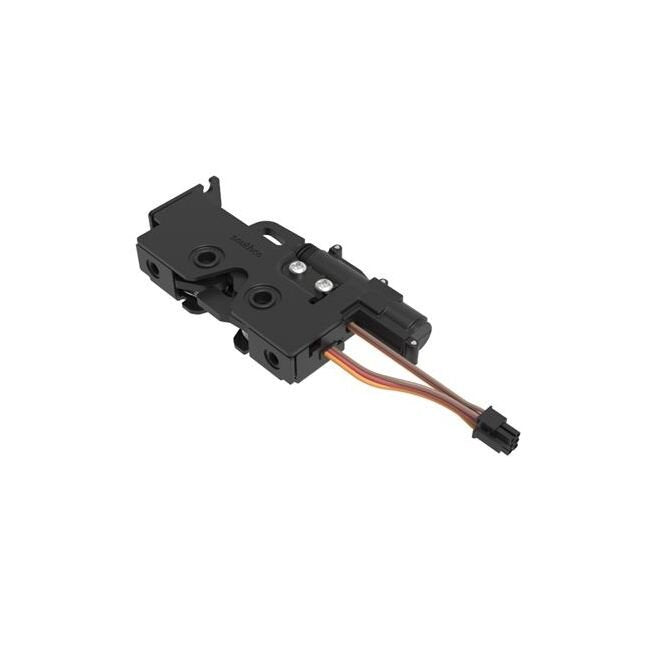

Southco R4 Rotary Latch with 12V Actuator
Southco R4 Rotary Latch with 12V Actuator
SKU:LOC-e924ae
Secure, medium-sized rotary latch with 12V actuator, electronic access, integrated bumper and cable mounting bracket, and IP67 compliance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Southco R4 Rotary Latch with 12V Actuator
$89.99
Quantity: 1
Claim Your Seller Account
Southco R4 Rotary Latch with 12V Actuator
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco R4 Rotary Latch is a medium-sized, single-stage latch designed for secure electronic access control. Featuring a bottom trigger, integrated cable mounting bracket, and bumper, this latch ensures reliable operation in demanding environments. The zinc nickel finish provides durability, while the IP67 compliance ensures water and dust resistance. With an extend-and-hold actuator, strong kickout trigger spring, and integrated microswitch for door and latch status monitoring, this rotary latch offers advanced functionality for various applications. Installable using rivets or screws, this Southco product is a robust solution for medium-duty access control needs.
Product Specifications
Specifications Access Restriction
Electronic Access
Specifications Actuator Type
Extend and Hold
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Black
Specifications Compliance Specification
IP 67
Specifications Finish
Zinc Nickel
Specifications Installation
Rivet / Screw
Specifications Material
Steel
Specifications Microswitch
Door and Latch Status Switch
Specifications Mounting Hole
Front Mount
Specifications Operation
Bottom
Specifications Performance Data Link
Performance Data
Specifications Product Family
Push-to-close Rotary
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Rotary Push-to-Close Latch, Medium Size, Single Stage with Switch and 12V Actuator, Bottom Trigger, Integrated Cable Mounting Bracket (for cable without spring), Integrated Bumper, Top Mount, Steel, Zinc Nickel
Specifications Size Series
Medium Size
Specifications Stage
Single Stage
Specifications Style
Integrated Bumper,Integrated Cable Mounting Bracket
Specifications Trade Drawing
Trade Drawing
Specifications Trigger Spring
Strong Kickout
Specifications Voltage
12 V
