Southco R4 Rotary Latch with 12V Actuator
Southco R4 Rotary Latch with 12V Actuator
SKU:LOC-37a58b

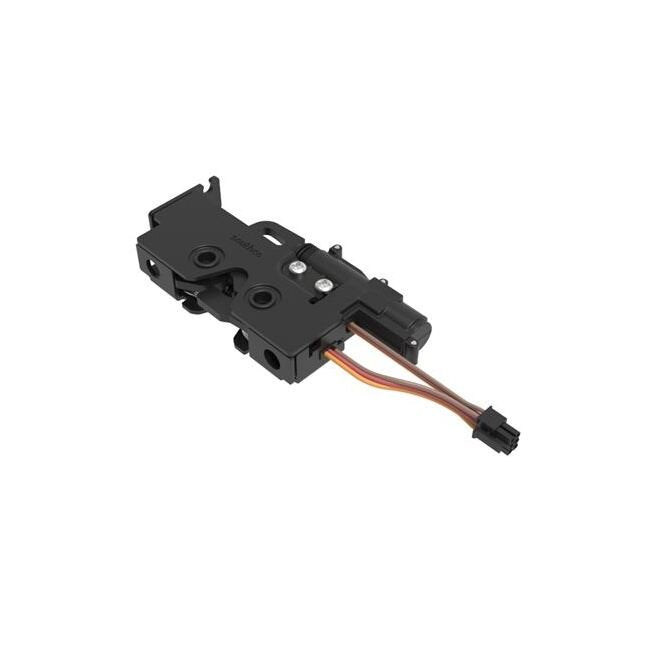

Southco R4: Medium-size Rotary Push-to-Close Latch with 12V Actuator, Bottom Trigger, and Electronic Access. Zinc Nickel finish for durability. IP67 rated.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Southco R4 Rotary Latch with 12V Actuator
$59.99
Quantity: 1
Claim Your Seller Account
Southco R4 Rotary Latch with 12V Actuator
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco R4 Rotary Latch is a robust locking solution designed for electronic access applications. This medium-sized latch features a single-stage mechanism with a bottom trigger and integrated cable mounting bracket, making it ideal for various locking needs. With its 12V actuator and strong kickout trigger spring, this latch ensures secure closure and reliable performance. The zinc nickel finish provides durability and corrosion resistance, meeting IP67 compliance standards.
Product Specifications
Specifications Access Restriction
Electronic Access
Specifications Actuator Type
Extend and Hold
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Black
Specifications Compliance Specification
IP 67
Specifications Finish
Zinc Nickel
Specifications Installation
Rivet / Screw
Specifications Material
Steel
Specifications Microswitch
Door and Latch Status Switch
Specifications Mounting Hole
1/4-20 Thread
Specifications Operation
Bottom
Specifications Performance Data Link
Performance Data
Specifications Product Family
Push-to-close Rotary
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Rotary Push-to-Close Latch, Medium Size, Single Stage with Switch and 12V Actuator, Bottom Trigger, Integrated Cable Mounting Bracket (for cable without spring), 1/4-20 Thread, Steel, Zinc Nickel
Specifications Size Series
Medium Size
Specifications Stage
Single Stage
Specifications Style
Integrated Cable Mounting Bracket
Specifications Trade Drawing
Trade Drawing
Specifications Trigger Spring
Strong Kickout
Specifications Voltage
12 V
