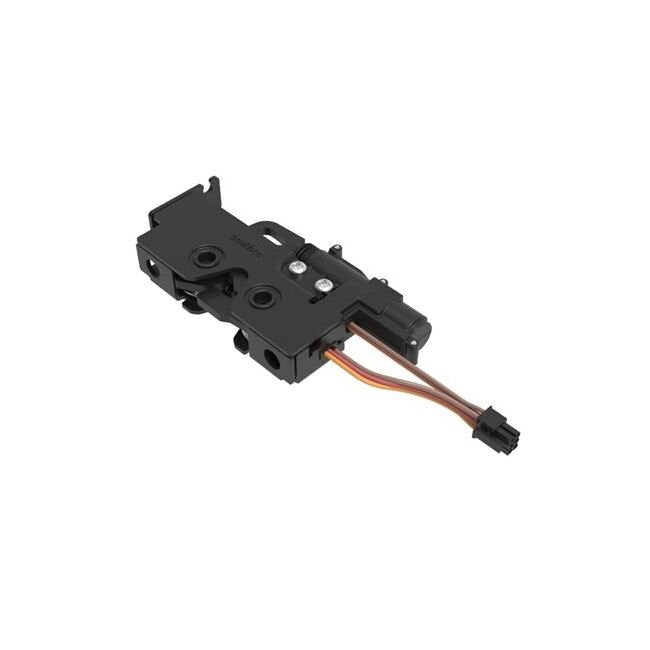

Southco R4 Rotary Latch with 12V Actuator and Electronic Access
Southco R4 Rotary Latch with 12V Actuator and Electronic Access
SKU:LOC-51107f
Medium-sized Southco R4 Rotary Latch with 12V Actuator, Electronic Access, Strong Kickout Trigger Spring, and IP 67 Compliance
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Southco R4 Rotary Latch with 12V Actuator and Electronic Access
$49.99
Quantity: 1
Claim Your Seller Account
Southco R4 Rotary Latch with 12V Actuator and Electronic Access
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco R4 Rotary Latch combines medium size durability with electronic access control, featuring a single-stage design with a 12V actuator for secure locking. This latch includes an integrated cable mounting bracket, strong kickout trigger spring, and bottom trigger operation. Crafted from steel with a zinc nickel finish, it offers IP 67 compliance and a 6.7 mm mounting hole for reliable performance in various applications.
Product Specifications
Specifications Access Restriction
Electronic Access
Specifications Actuator Type
Extend and Hold
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Black
Specifications Compliance Specification
IP 67
Specifications Finish
Zinc Nickel
Specifications Installation
Rivet / Screw
Specifications Material
Steel
Specifications Microswitch
Door and Latch Status Switch
Specifications Mounting Hole
6.7 mm Thru
Specifications Operation
Bottom
Specifications Performance Data Link
Performance Data
Specifications Product Family
Push-to-close Rotary
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Rotary Push-to-Close Latch, Medium Size, Single Stage with Switch and 12V Actuator, Bottom Trigger, Integrated Cable Mounting Bracket (for cable without spring), 6.7 mm Thru, Steel, Zinc Nickel
Specifications Size Series
Medium Size
Specifications Stage
Single Stage
Specifications Style
Integrated Cable Mounting Bracket
Specifications Trade Drawing
Trade Drawing
Specifications Trigger Spring
Strong Kickout
Specifications Voltage
12 V
