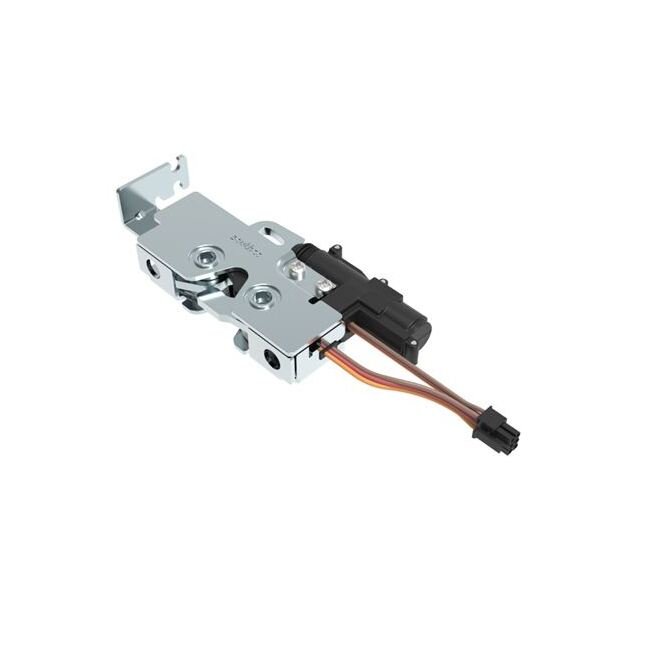

Southco R4 Rotary Latch with 12V Actuator and Switch
Southco R4 Rotary Latch with 12V Actuator and Switch
SKU:LOC-bd9694
Medium-sized Southco R4 Rotary Latch with 12V Actuator, Switch, strong kickout trigger spring, and IP 67 compliance for electronic access.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Southco R4 Rotary Latch with 12V Actuator and Switch
$49.99
Quantity: 1
Claim Your Seller Account
Southco R4 Rotary Latch with 12V Actuator and Switch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco R4 Rotary Latch is a reliable locking solution designed for medium-duty applications. This latch features a single-stage design with a 12V actuator and a switch for enhanced security. The bottom trigger and integrated cable mounting bracket make installation easy, while the strong kickout trigger spring ensures durability. Constructed from steel with a zinc plate and bright chromate finish, this latch offers reliable performance in electronic access environments. With IP 67 compliance, this rotary latch is suitable for a range of settings where security and convenience are essential.
Product Specifications
Specifications Access Restriction
Electronic Access
Specifications Actuator Type
Extend and Hold
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
IP 67
Specifications Finish
Zinc Plate, Bright chromate
Specifications Installation
Rivet / Screw
Specifications Material
Steel
Specifications Microswitch
Door and Latch Status Switch
Specifications Mounting Hole
1/4-20 Thread
Specifications Operation
Bottom
Specifications Performance Data Link
Performance Data
Specifications Product Family
Push-to-close Rotary
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Rotary Push-to-Close Latch, Medium Size, Single Stage with Switch and 12V Actuator, Bottom Trigger, Integrated Cable Mounting Bracket (for cable with spring), 1/4-20 Thread, Steel, Zinc Plate, Bright Chromate
Specifications Size Series
Medium Size
Specifications Stage
Single Stage
Specifications Style
Integrated Cable Mounting Bracket
Specifications Trade Drawing
Trade Drawing
Specifications Trigger Spring
Strong Kickout
Specifications Voltage
12 V
