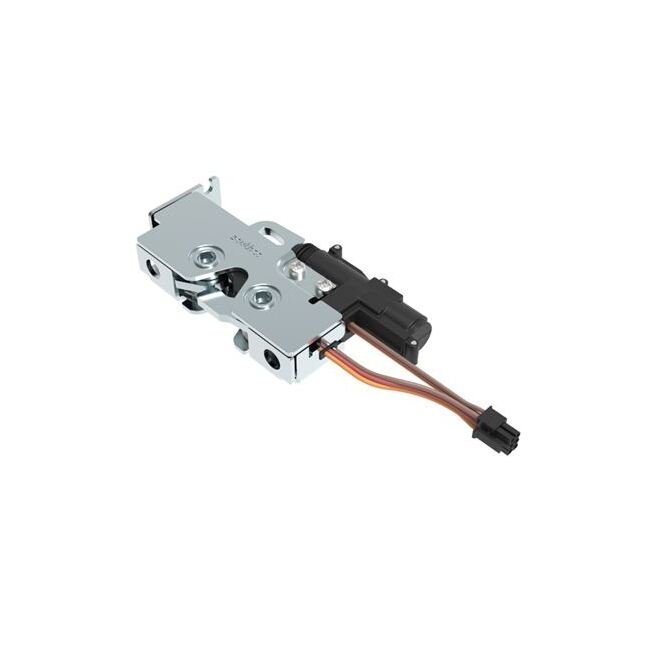

Southco R4 Rotary Latch with Switch and 12V Actuator
Southco R4 Rotary Latch with Switch and 12V Actuator
SKU:LOC-c5f448
Secure your enclosures with the electronic access Southco R4 Rotary Latch feat. 12V actuator, steel construction, and IP67 compliance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Southco R4 Rotary Latch with Switch and 12V Actuator
$59.99
Quantity: 1
Claim Your Seller Account
Southco R4 Rotary Latch with Switch and 12V Actuator
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco R4 Rotary Latch is a medium-sized, electronic access rotary push-to-close latch designed with a 12V actuator for secure closure. Featuring a single-stage operation with a bottom trigger, integrated cable mounting bracket, and bumper, this latch is crafted from steel with a zinc plate and bright chromate finish. With an IP67 compliance specification, this latch ensures reliable performance and durability in diverse applications. The included microswitch provides door and latch status indication, enhancing security and functionality.
Product Specifications
Specifications Access Restriction
Electronic Access
Specifications Actuator Type
Extend and Hold
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
IP 67
Specifications Finish
Zinc Plate, Bright chromate
Specifications Installation
Rivet / Screw
Specifications Material
Steel
Specifications Microswitch
Door and Latch Status Switch
Specifications Mounting Hole
6.7 mm Thru
Specifications Operation
Bottom
Specifications Performance Data Link
Performance Data
Specifications Product Family
Push-to-close Rotary
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Rotary Push-to-Close Latch, Medium Size, Single Stage with Switch and 12V Actuator, Bottom Trigger, Integrated Cable Mounting Bracket (for cable without spring), Integrated Bumper, 6.7 mm Thru, Steel, Zinc Plate, Bright Chromate
Specifications Size Series
Medium Size
Specifications Stage
Single Stage
Specifications Style
Integrated Bumper,Integrated Cable Mounting Bracket
Specifications Trade Drawing
Trade Drawing
Specifications Trigger Spring
Strong Kickout
Specifications Voltage
12 V
