Southco R4 Rotary Latch with Switch and Actuator
Southco R4 Rotary Latch with Switch and Actuator
SKU:LOC-d6ac85
Southco R4 Rotary Latch - Medium Size, 12V Actuator, Electronic Access, IP67, Zinc Nickel Finish, Steel, Bottom Trigger, Integrated Switch
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Southco R4 Rotary Latch with Switch and Actuator
$29.99
Quantity: 1
Claim Your Seller Account
Southco R4 Rotary Latch with Switch and Actuator
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

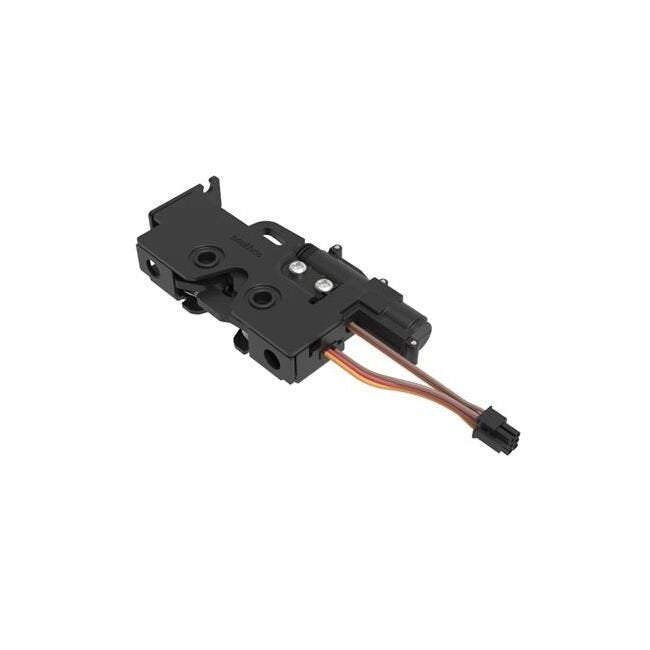

The Southco R4 Rotary Latch is a medium-sized, single-stage latch with a 12V actuator and integrated switch for electronic access control. Featuring a bottom trigger, M6 thread, zinc nickel finish, and steel construction, this latch ensures secure closure with an integrated bumper for added protection. Ideal for applications requiring IP67 compliance, the R4 Rotary Latch offers strong kickout trigger spring and convenient cable mounting bracket without spring.
Product Specifications
Specifications Access Restriction
Electronic Access
Specifications Actuator Type
Extend and Hold
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Black
Specifications Compliance Specification
IP 67
Specifications Finish
Zinc Nickel
Specifications Installation
Rivet / Screw
Specifications Material
Steel
Specifications Microswitch
Door and Latch Status Switch
Specifications Mounting Hole
M6 Thread
Specifications Operation
Bottom
Specifications Performance Data Link
Performance Data
Specifications Product Family
Push-to-close Rotary
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Rotary Push-to-Close Latch, Medium Size, Single Stage with Switch and 12V Actuator, Bottom Trigger, Integrated Cable Mounting Bracket (for cable without spring), Integrated Bumper, M6 Thread, Steel, Zinc Nickel
Specifications Size Series
Medium Size
Specifications Stage
Single Stage
Specifications Style
Integrated Bumper,Integrated Cable Mounting Bracket
Specifications Trade Drawing
Trade Drawing
Specifications Trigger Spring
Strong Kickout
Specifications Voltage
12 V
