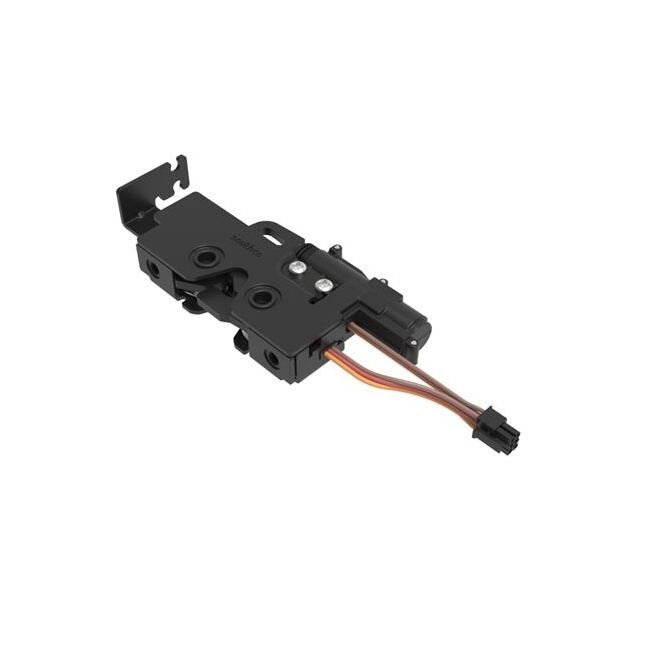

Southco R4 Rotary Push-to-Close Latch with 12V Actuator
Southco R4 Rotary Push-to-Close Latch with 12V Actuator
SKU:LOC-7bd73a
Secure electronic access with Southco R4 Rotary Latch - medium size, single stage, 12V actuator, IP 67 compliant, steel construction.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Southco R4 Rotary Push-to-Close Latch with 12V Actuator
$45.99
Quantity: 1
Claim Your Seller Account
Southco R4 Rotary Push-to-Close Latch with 12V Actuator
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco R4 Rotary Latch is a medium-sized, single-stage latch featuring a switch and 12V actuator for secure electronic access control. Designed with a bottom trigger, integrated cable mounting bracket, and bumper, this steel latch with zinc nickel finish ensures durability and reliability. With IP 67 compliance, strong kickout trigger spring, and an extend-and-hold actuator type, this latch offers optimal performance for various applications. Suitable for front mounting with a top mount style, this Southco product is part of the Push-to-close Rotary family, providing a blend of functionality and quality for your locking needs.
Product Specifications
Specifications Access Restriction
Electronic Access
Specifications Actuator Type
Extend and Hold
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Black
Specifications Compliance Specification
IP 67
Specifications Finish
Zinc Nickel
Specifications Installation
Rivet / Screw
Specifications Material
Steel
Specifications Microswitch
Door and Latch Status Switch
Specifications Mounting Hole
Front Mount
Specifications Operation
Bottom
Specifications Performance Data Link
Performance Data
Specifications Product Family
Push-to-close Rotary
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Rotary Push-to-Close Latch, Medium Size, Single Stage with Switch and 12V Actuator, Bottom Trigger, Integrated Cable Mounting Bracket (for cable with spring), Integrated Bumper, Top Mount, Steel, Zinc Nickel
Specifications Size Series
Medium Size
Specifications Stage
Single Stage
Specifications Style
Integrated Bumper,Integrated Cable Mounting Bracket
Specifications Trade Drawing
Trade Drawing
Specifications Trigger Spring
Strong Kickout
Specifications Voltage
12 V
