Southco R4 Rotary Push-to-Close Latch with 12V Actuator
Southco R4 Rotary Push-to-Close Latch with 12V Actuator
SKU:LOC-51c13d
Southco R4 Rotary Push-to-Close Latch - Secure, durable medium-sized latch with 12V actuator for electronic access applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Southco R4 Rotary Push-to-Close Latch with 12V Actuator
$39.99
Quantity: 1
Claim Your Seller Account
Southco R4 Rotary Push-to-Close Latch with 12V Actuator
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

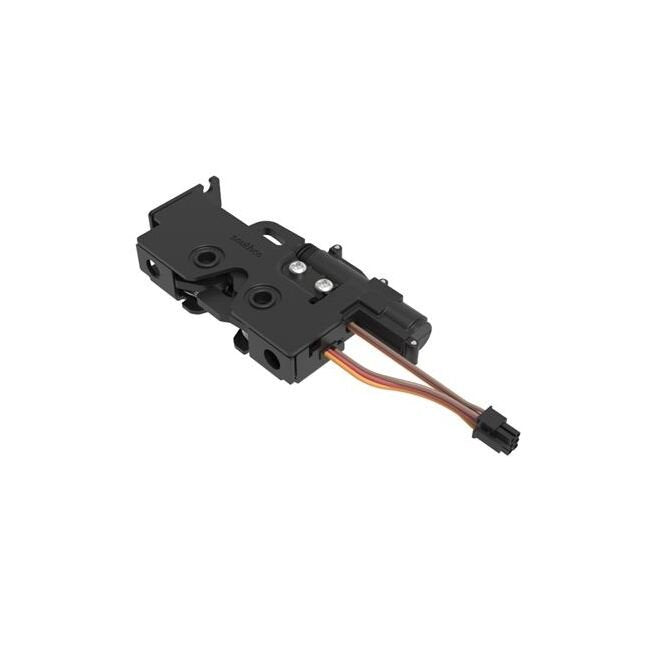

The Southco R4 Rotary Latch is a medium-sized, single-stage latch with a switch and 12V actuator, designed for electronic access applications. Featuring a bottom trigger, integrated cable mounting bracket, and an integrated bumper, this latch ensures secure closure. Constructed from steel with a zinc nickel finish, it offers durability and IP67 compliance, making it suitable for various environments. With a strong kickout trigger spring and an extend-and-hold actuator type, this push-to-close latch from the renowned Southco® brand provides reliable performance and ease of installation.
Product Specifications
Specifications Access Restriction
Electronic Access
Specifications Actuator Type
Extend and Hold
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Black
Specifications Compliance Specification
IP 67
Specifications Finish
Zinc Nickel
Specifications Installation
Rivet / Screw
Specifications Material
Steel
Specifications Microswitch
Door and Latch Status Switch
Specifications Mounting Hole
6.7 mm Thru
Specifications Operation
Bottom
Specifications Performance Data Link
Performance Data
Specifications Product Family
Push-to-close Rotary
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Rotary Push-to-Close Latch, Medium Size, Single Stage with Switch and 12V Actuator, Bottom Trigger, Integrated Cable Mounting Bracket (for cable without spring), Integrated Bumper, 6.7 mm Thru, Steel, Zinc Nickel
Specifications Size Series
Medium Size
Specifications Stage
Single Stage
Specifications Style
Integrated Bumper,Integrated Cable Mounting Bracket
Specifications Trade Drawing
Trade Drawing
Specifications Trigger Spring
Strong Kickout
Specifications Voltage
12 V
