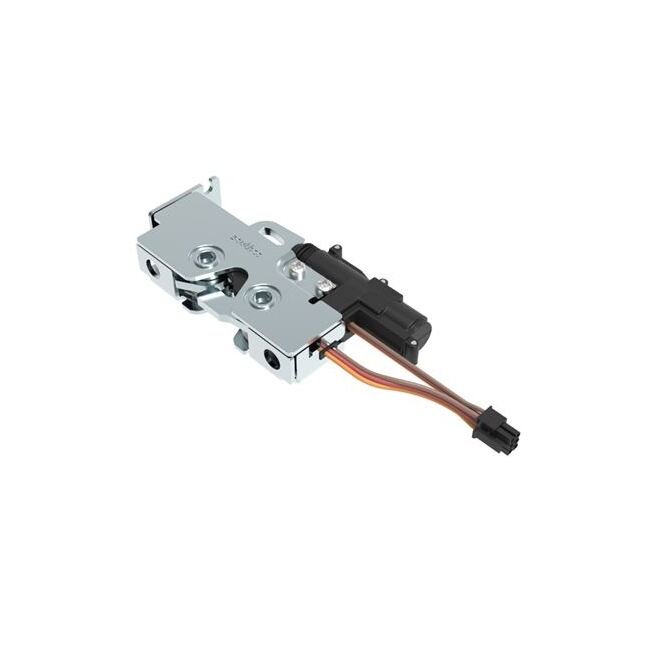

Southco R4 Rotary Push-to-Close Latch with 12V Actuator
Southco R4 Rotary Push-to-Close Latch with 12V Actuator
SKU:LOC-b9a911
Southco R4 Rotary Latch: Medium-sized, Electronic Access, 12V Actuator, Bottom Trigger, Steel, IP67 Compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Southco R4 Rotary Push-to-Close Latch with 12V Actuator
$59.99
Quantity: 1
Claim Your Seller Account
Southco R4 Rotary Push-to-Close Latch with 12V Actuator
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco R4 Rotary Latch is a medium-sized push-to-close latch designed with an integrated cable mounting bracket, ideal for electronic access applications. This single-stage latch features a 12V actuator, bottom trigger, and M6 thread for secure installation. Crafted from steel with a zinc plate and bright chromate finish, this latch ensures durability, IP67 compliance, and a strong kickout trigger spring. The included microswitch provides door and latch status information, making it a reliable choice for institutions and government entities requiring precision and performance.
Product Specifications
Specifications Access Restriction
Electronic Access
Specifications Actuator Type
Extend and Hold
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Bright
Specifications Compliance Specification
IP 67
Specifications Finish
Zinc Plate, Bright chromate
Specifications Installation
Rivet / Screw
Specifications Material
Steel
Specifications Microswitch
Door and Latch Status Switch
Specifications Mounting Hole
M6 Thread
Specifications Operation
Bottom
Specifications Performance Data Link
Performance Data
Specifications Product Family
Push-to-close Rotary
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Rotary Push-to-Close Latch, Medium Size, Single Stage with Switch and 12V Actuator, Bottom Trigger, Integrated Cable Mounting Bracket (for cable without spring), M6 Thread, Steel, Zinc Plate, Bright Chromate
Specifications Size Series
Medium Size
Specifications Stage
Single Stage
Specifications Style
Integrated Cable Mounting Bracket
Specifications Trade Drawing
Trade Drawing
Specifications Trigger Spring
Strong Kickout
Specifications Voltage
12 V
