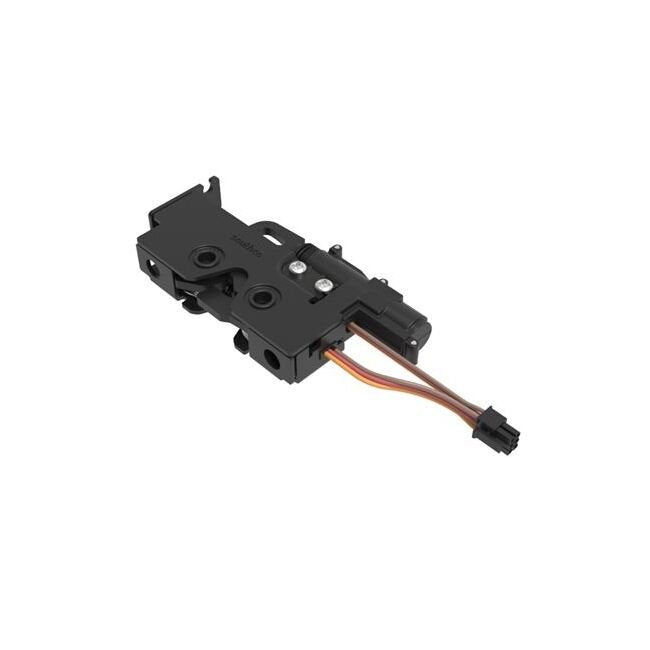

Southco R4 Rotary Push-to-Close Latch with Switch and 12V Actuator
Southco R4 Rotary Push-to-Close Latch with Switch and 12V Actuator
SKU:LOC-cd26d9
Medium-sized Southco R4 Rotary Latch with 12V Actuator and IP67 Compliance. Includes integrated cable mounting bracket for secure locking solutions.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Southco R4 Rotary Push-to-Close Latch with Switch and 12V Actuator
$49.99
Quantity: 1
Claim Your Seller Account
Southco R4 Rotary Push-to-Close Latch with Switch and 12V Actuator
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco R4 Rotary Latch is a medium-sized, single-stage locking solution designed for electronic access control. Featuring a 12V actuator and bottom trigger, this latch ensures secure closure with integrated cable mounting bracket suitable for cables without springs. Constructed from durable steel with a zinc nickel finish, it offers IP 67 compliance for protection against dust and water. The latch includes a door and latch status switch microswitch, M6 thread mounting hole, and an integrated cable mounting bracket for easy installation. Ideal for applications requiring reliable and robust locking mechanisms.
Product Specifications
Specifications Access Restriction
Electronic Access
Specifications Actuator Type
Extend and Hold
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Color Appearance
Black
Specifications Compliance Specification
IP 67
Specifications Finish
Zinc Nickel
Specifications Installation
Rivet / Screw
Specifications Material
Steel
Specifications Microswitch
Door and Latch Status Switch
Specifications Mounting Hole
M6 Thread
Specifications Operation
Bottom
Specifications Performance Data Link
Performance Data
Specifications Product Family
Push-to-close Rotary
Specifications Product Specs Link
Product Specifications
Specifications Short Description
Rotary Push-to-Close Latch, Medium Size, Single Stage with Switch and 12V Actuator, Bottom Trigger, Integrated Cable Mounting Bracket (for cable without spring), M6 Thread, Steel, Zinc Nickel
Specifications Size Series
Medium Size
Specifications Stage
Single Stage
Specifications Style
Integrated Cable Mounting Bracket
Specifications Trade Drawing
Trade Drawing
Specifications Trigger Spring
Strong Kickout
Specifications Voltage
12 V
