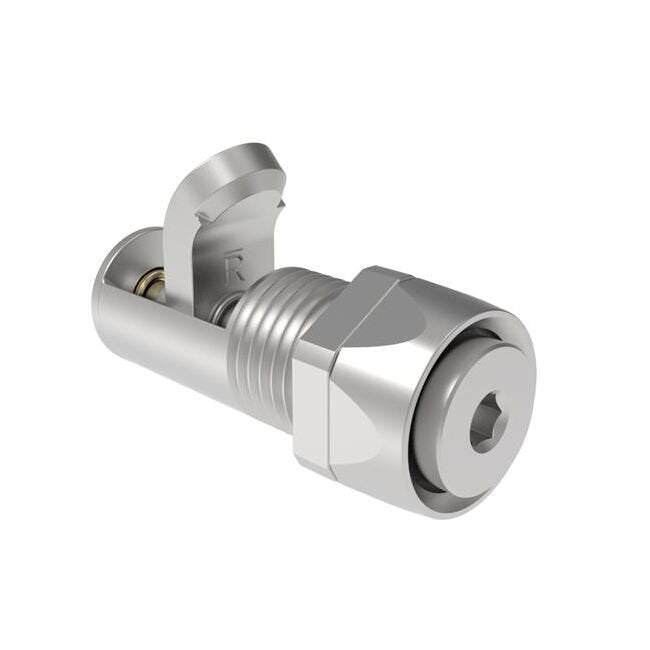

Southco Self-Adjusting Compression Latch 16/27/48 - Stainless Steel
Southco Self-Adjusting Compression Latch 16/27/48 - Stainless Steel
SKU:LOC-e57c61
Secure, self-adjusting stainless steel compression latch for 1.5-4.8mm panels. UL FTTA2/FTTA8 Type 1 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Southco Self-Adjusting Compression Latch 16/27/48 - Stainless Steel
$24.99
Quantity: 1
Claim Your Seller Account
Southco Self-Adjusting Compression Latch 16/27/48 - Stainless Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Southco Self-Adjusting Compression Latch 16/27/48 is a high-quality, miniature size latch designed for secure tool locking. Featuring a stainless steel construction with a passivated finish, this latch offers durability and corrosion resistance. With a hex recess head style and a grip range of 0.8-7.1mm, it suits panels ranging from 1.5mm to 4.8mm in thickness. This latch is UL FTTA2/FTTA8 Type 1 compliant, ensuring reliable performance and adherence to industry standards.
Product Specifications
Specifications Access Restriction
Tool
Specifications Brand
Southco® is a registered trademark of Southco Inc.
Specifications Compliance Specification
UL FTTA2 / FTTA8 Type 1
Specifications Grip Maximum
7.1
Specifications Grip Minimum
0.8
Specifications Head Style
Hex Recess
Specifications Keywords
Compression Latch
Specifications Material
Stainless Steel
Specifications Max Outer Panel Thickness
4.8
Specifications Min Outer Panel Thickness
0
Specifications Performance Data Link
Performance Data
Specifications Product Family
Compression Latches
Specifications Product Specs Link
Product Specifications
Specifications Profile
Standard
Specifications Pullup
6.3
Specifications Rotation
Type A - Turn Clockwise to Latch
Specifications Short Description
Compression Latch, Self-Adjusting, Miniature Size, Tool Locking, Hex Recess, 1.5-4.8mm Panel, 0.8-7.1mm Grip, Stainless steel, Passivated, Silver
Specifications Size Series
Miniature Size
Specifications Trade Drawing
Trade Drawing
