SP-A & SP-A-PL Hand Operated Hydraulic Pumps
SP-A & SP-A-PL Hand Operated Hydraulic Pumps
SKU:HYD-f321b2
Cost-effective, manual hydraulic pumps ideal for emergencies and equipment without own reservoirs. Max pressure 10000 PSI.
Regular price
$282.00
Regular price
Sale price
$282.00
Unit price
per
Initiate Order
SP-A & SP-A-PL Hand Operated Hydraulic Pumps
$282.00
Quantity: 1
Claim Your Seller Account
SP-A & SP-A-PL Hand Operated Hydraulic Pumps
$282.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

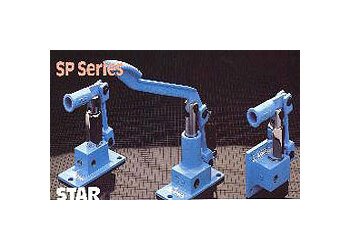

The SP-A & SP-A-PL Series Hand Operated Hydraulic Pumps are designed for equipment that already has reservoirs and control valves. These base or flange mounted pumps, with steel pump bodies and hard chrome plated pistons, offer a cost-effective solution for manual pressure development up to 10000 PSI. Ideal for emergencies, these pumps provide reliable hydraulic power for presses, valves, locks, and more. Each pump comes with a 24" operating lever, while stainless steel models are also available.
Product Specifications
Specifications Adjustable Overload Relief Valve
No
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 100 Psi
1.23 lb
Specifications List Price
282 USD
Specifications Manual Pressure Release Valve
No
Specifications Maximum Pressure Rating
10000 psi
Specifications Mounting
Base Mounted
Specifications Net Weight
10 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1/2 in
Specifications Series
SP
Specifications Volume Per Stroke
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
