SP-A & SP-A-PL Series Hand Operated Hydraulic Pumps
SP-A & SP-A-PL Series Hand Operated Hydraulic Pumps
SKU:HYD-64c6bf
Cost-effective and reliable SP-A & SP-A-PL Series Hand Operated Hydraulic Pumps for up to 10,000 PSI pressure. Ideal for emergencies and standby applications.
Regular price
$379.00
Regular price
Sale price
$379.00
Unit price
per
Initiate Order
SP-A & SP-A-PL Series Hand Operated Hydraulic Pumps
$379.00
Quantity: 1
Claim Your Seller Account
SP-A & SP-A-PL Series Hand Operated Hydraulic Pumps
$379.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

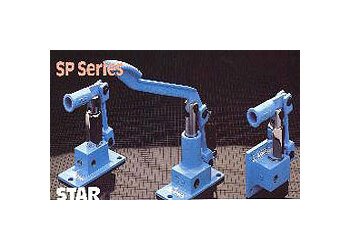

The SP-A & SP-A-PL Series Hand Operated Hydraulic Pumps are efficient and cost-effective solutions for manually developing or increasing pressure in a hydraulic system. These pumps, available in hand or foot-operated versions, can provide pressure up to 10,000 PSI, making them ideal for emergencies to power presses, valves, safety locks, and more. With a sturdy steel body and options for stainless steel parts, including hard chrome-plated pistons, these pumps are reliable in various environments, including medical and food handling applications. Offering quick availability with parts shipped within 24 hours, these pumps are a dependable choice for standby and emergency hydraulic power needs.
Product Specifications
Specifications Adjustable Overload Relief Valve
No
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 100 Psi
20.0 lb
Specifications List Price
379 USD
Specifications Manual Pressure Release Valve
No
Specifications Maximum Pressure Rating
500 psi
Specifications Mounting
Base Mounted
Specifications Net Weight
10 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
2 in
Specifications Series
SP
Specifications Volume Per Stroke
4.71 in³
Technical Information 0
Limited Warranty All Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem. Technical Data Light hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid. All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
