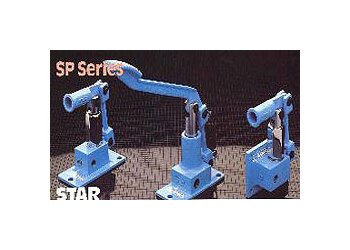

SP-A & SP-A-PL Series Hand Operated Hydraulic Pumps
SP-A & SP-A-PL Series Hand Operated Hydraulic Pumps
SKU:HYD-efad84
Reliable and efficient hand operated hydraulic pumps for up to 10,000 PSI pressure. Ideal for emergencies and diverse applications.
Regular price
$437.00
Regular price
Sale price
$437.00
Unit price
per
Initiate Order
SP-A & SP-A-PL Series Hand Operated Hydraulic Pumps
$437.00
Quantity: 1
Claim Your Seller Account
SP-A & SP-A-PL Series Hand Operated Hydraulic Pumps
$437.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SP-A & SP-A-PL Series Hand Operated Hydraulic Pumps are versatile solutions for developing or increasing pressure in hydraulic systems. These pumps, available in hand or foot operated versions, provide reliable hydraulic power up to 10,000 PSI. With features like flange mounting, hard chrome plated pistons, and steel body construction, these pumps are commonly used as stand-by options for emergencies in various industries. The stainless steel variant is ideal for medical, food handling, and corrosive environments, offering durability and performance. Backed by a limited warranty, these pumps are compatible with light hydraulic oils, ensuring reliable operation.
Product Specifications
Specifications Adjustable Overload Relief Valve
No
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 100 Psi
11.0 lb
Specifications List Price
437 USD
Specifications Manual Pressure Release Valve
No
Specifications Maximum Pressure Rating
1000 psi
Specifications Mounting
Flange Mounted
Specifications Net Weight
10 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 1/2 in
Specifications Series
SP-PL
Specifications Volume Per Stroke
2.65 in³
Technical Information 0
Limited Warranty All Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem. Technical Data Light hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid. All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
