SP Series 0.125 Inch (in) Bore Diameter Standard Precision Double Shielded Ball Bearing Nylon Pulley

Name: SP Series 0.125 Inch (in) Bore Diameter Standard Precision Double Shielded Ball Bearing Nylon Pulley
Brand: Carl Stahl Sava Industries
SKU: SPS-4e2ef4
Price: 49.99 USD
Availability: OutOfStock

SKU:SPS-4e2ef4

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SP Series pulleys are nylon incorporated with a precision, lubricated single row ball bearing which is meeting ABEC3 tolerances standards and is double shielded to protect it from dirt. The combination of polyamide and precision bearings makes this pulley capable of satisfying the load, speed, and life expectancy of customer requirements.

Product Specifications

Note

This product has a minimum quantity of 5.

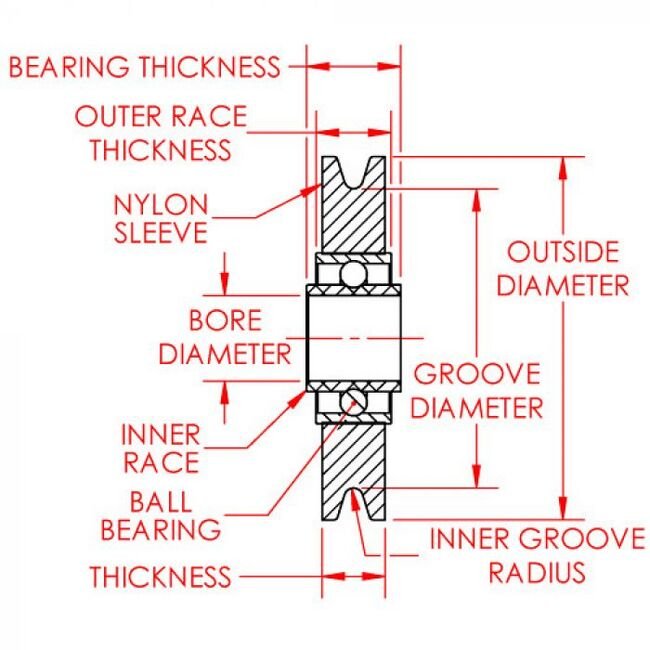

Technical Specs Bearing Thickness

0.110 in

Technical Specs Bore Condition

Precision Double Shielded Ball Bearing

Technical Specs Bore Diameter

0.125 in

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Material

Nylon

Technical Specs Cable Type

Standard

Technical Specs Inner Groove Radius

0.015 in

Technical Specs Load Rating

Technical Specs Maximum Mating Cable Diameter

0.032 in

Technical Specs Outer Groove Diameter

0.31 in

Technical Specs Outer Race Thickness

0.141 in

Technical Specs Outside Diameter

0.375 in

Technical Specs Part

SP2031E

Technical Specs Thickness

0.093 in

SP Series 0.125 Inch (in) Bore Diameter Standard Precision Double Shielded Ball Bearing Nylon Pulley
