SP Series 0.25 Inch (in) Bore Diameter Standard Precision Double Shielded Ball Bearing Nylon Pulley
SP Series 0.25 Inch (in) Bore Diameter Standard Precision Double Shielded Ball Bearing Nylon Pulley
SKU:SPS-cb8c90
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SP Series 0.25 Inch (in) Bore Diameter Standard Precision Double Shielded Ball Bearing Nylon Pulley
$49.99
Quantity: 1
Claim Your Seller Account
SP Series 0.25 Inch (in) Bore Diameter Standard Precision Double Shielded Ball Bearing Nylon Pulley
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SP Series pulleys are nylon incorporated with a precision, lubricated single row ball bearing which is meeting ABEC3 tolerances standards and is double shielded to protect it from dirt. The combination of polyamide and precision bearings makes this pulley capable of satisfying the load, speed, and life expectancy of customer requirements.

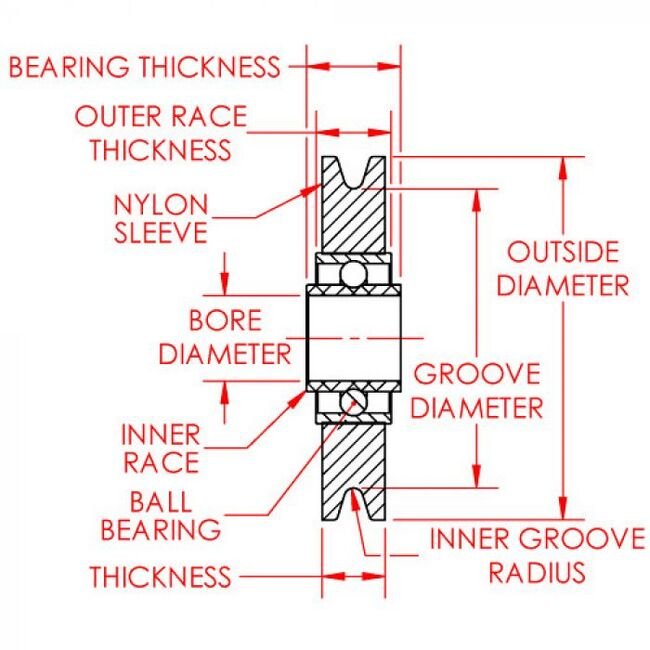

Product Specifications
Note
This product has a minimum quantity of 5.
Technical Specs Bearing Thickness
0.188 in
Technical Specs Bore Condition
Precision Double Shielded Ball Bearing
Technical Specs Bore Diameter
0.25 in
Technical Specs Brands
Carl Stahl Sava Industries, Inc.
Technical Specs Cable Material
Nylon
Technical Specs Cable Type
Standard
Technical Specs Inner Groove Radius
0.025 in
Technical Specs Load Rating
90
Technical Specs Maximum Mating Cable Diameter
0.045 in
Technical Specs Outer Groove Diameter
0.885 in
Technical Specs Outer Race Thickness
0.219 in
Technical Specs Outside Diameter
1.07 in
Technical Specs Part
SP4088E
Technical Specs Thickness
0.188 in
