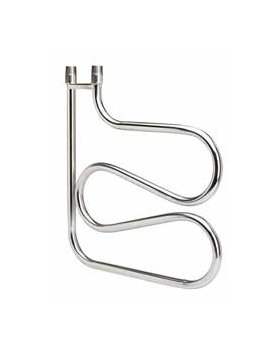

The SP Series Serpentine Coils are designed for superior chemical resistance, featuring a wide variety of materials suitable for heating or cooling applications in alkaline and acid solutions. With rugged construction including heavy wall metal tubing in steel, 316 stainless steel, and titanium, these coils offer outstanding performance in tanks with limited space. Each inch of coil surface is active exchange area, ensuring leak-free operation and efficient heat transfer. Options include mounting hangers, special configurations, and a range of materials like Zirconium and Hastelloy C for customized solutions.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline solutions, acid solutions, and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material. RUGGED CONSTRUCTION: Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel and titanium. OUTSTANDING PERFORMANCE: Low profile design for installation in tanks with limited space. Offers low cost for heating surface area. Every inch of coil surface is active exchange area. LEAK-FREE OPERATION: Single point connections reduce thepotential for leaks and simplifies installation. SIZES: 2.6 square ft. to 10 square ft. of exchange area standard for 4-pass and 6-pass designs. OPTIONS AVAILABLE (consult factory): Mounting hangers. Special sizes in 2, 8 or 10-pass configurations. Heavier gauge tubing. Other riser lengths and configurations. Zirconium, Hastelloy C and other alloys available. Fluoropolymer coatings for protection at solution/atmospheric interface. Non-conductive isolator couplings. L-shaped configurations for bottom heat applications. High pressure ratings available (consult factory).
Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 "

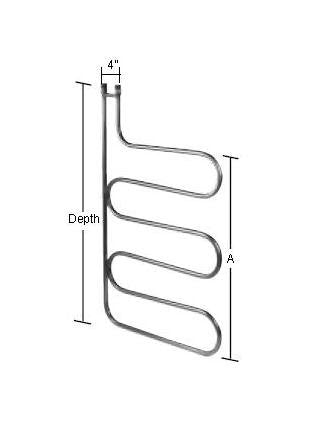

Specifications Depth
36 " | 914 mm
Specifications Exchange Area
7.3 ft²
Specifications Inlet Connection
A = 3/4" MNPT | B = 1" MNPT - (Standard) | C = 1-1/4" MNPT | D = 1-1/2" MNPT | F = 1/2" FNPT | G = 3/4" FNPT | H = 1" FNPT | J = 1/2" FNPT
Specifications Length
78 " | 1981 mm
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Miscellaneous
-LP = low profile
Specifications Number Of Passes
4
Specifications Outlet Connection
A = 3/4" MNPT | B = 1" MNPT - (Standard) | C = 1-1/4" MNPT | D = 1-1/2" MNPT | F = 1/2" FNPT | G = 3/4" FNPT | H = 1" FNPT | J = 1/2" FNPT

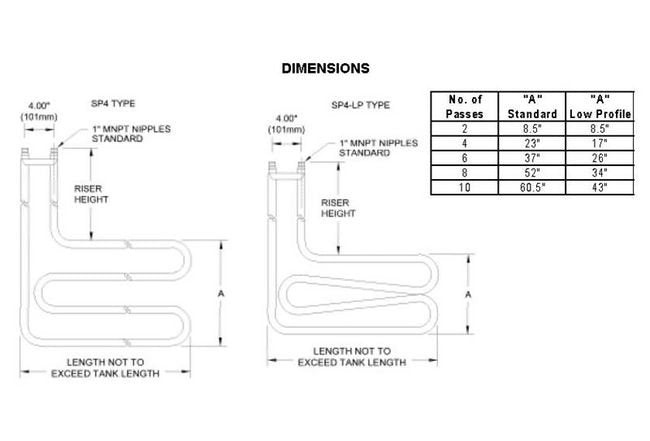

Specifications Riser Height
-BR = bottom style coil, specify riser height | -R = specify custom riser height
Specifications Shipping Weight
20.0 Pound
Specifications Weight
20.0 lbs | 9.1 kg
