The SP2800 Series Shaft-Type Rotary Sensor is an industry-leading position sensor designed for demanding industrial and mobile applications. Featuring a highly robust potentiometer with an excellent lifetime exceeding 50 million movements, this sensor offers exceptional reliability and durability. With options for single channel or fully electrically redundant configurations, easy mounting, and a wide temperature range, this sensor ensures precise and accurate angle measurement in any orientation. The sensor is housed in high-grade, temperature-resistant plastic with a stainless steel shaft and conductive plastic resistance element. With a sealed IP67 rating, elastomer damped wipers, and a variety of defined electrical angles, this sensor provides superior performance in challenging environments.
Product Specifications
Specifications Cable Length
1,000 mm
Specifications Cable Type
Raychem 55, 22 AWG
Specifications Continuous Mechanical Angles
360 º
Specifications Coupling Type
Push-on Coupling
Specifications Defined Electrical Angle
08 º | 100 º | 345 º
Specifications Defined Electrical Angle Tolerance
2
Specifications Dielectric Strength 50 Hz 2 S 1 Bar 500 Vac
= 100 µA
Specifications Electrical Angle
130
Specifications Electrical Connections Standard

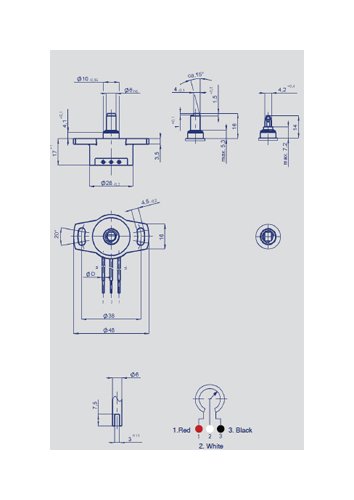

1 = red, 2 = white, 3 = black | 1-channel: 3 conductors | Diameter = 2.1 mm | l=1000 mm | Raychem 55
Specifications Housing And Bearing
High-grade | Temperature-resistant plastic
Specifications Housing Material
Aluminum
Specifications Insulation Resistance 500 Vdc 1 Bar 2 S
= 10 MO
Specifications Life
> 50x106 Movements
Specifications Linearity
1 %
Specifications Maximum Allowed Wiper Current In Case Of Malfunct
10 mA
Specifications Maximum Dynamic Shaft Loading Axial And Radial
20 N
Specifications Maximum Operational Speed
120 rpm
Specifications Maximum Permissible Applied Voltage
42 V
Specifications Maximum Static Shaft Loading Axial And Radial
20 N
Specifications Maximum Torque For Mounting Screws With Washer
180 N·cm
Specifications Mounting
2 fillister head screws M4 with washers
Specifications Mounting Position
Any Orientation
Specifications Nominal Resistance
3 kO | 5 kO
Specifications Protection Class
IP67
Specifications Recommended Operating Wiper Current
= 1 µA
Specifications Repeatability
0.01 %
Specifications Resistance Element
Conductive Plastic
Specifications Resistance Tolerance
20 %
Specifications Shaft
Stainless Steel
Specifications Special Features
Highly robust potentiometer for demanding industrial and mobile applications | Excellent lifetime - in excess of 50 million movements | Single channel or fully electrically redundant | Easy mounting and mechanical adjustment | Excellent price/performance ratio | Plastic or aluminum housing | Wide temperature range | Elastomer damped wipers | Sealed to IP 67 | Two shaft styles, including easy “push-on” coupling
Specifications Temperature Range
-40 to 150 º C
Specifications Effective Temperature Coefficient Of The
5 ppm/K
Specifications Vibration
5 to 2000 Hz | Amax = 0.75 mm | amax = 20 g
Specifications Weight
30 g
Specifications Wiper Assembly
Precious Metal multi-finger wiper
