SPA Series Wire Rope Load Pins - Stainless Steel Precision Load Sensing
SPA Series Wire Rope Load Pins - Stainless Steel Precision Load Sensing
SKU:LOA-eed2a2
Upgrade to precision force measurement with SPA Series Wire Rope Load Pins. Rugged, stainless steel design for accurate load sensing.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

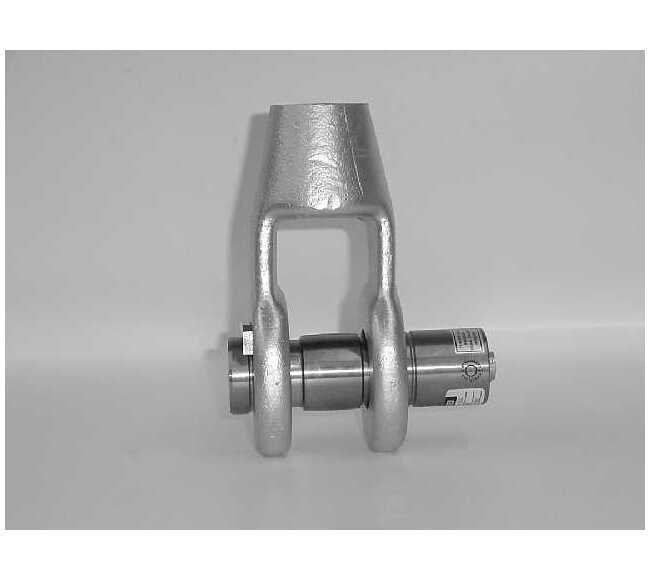

Enhance your load sensing capabilities with the SPA Series Wire Rope Load Pins. These pins boast a rugged construction with internally sealed strain gages for accurate direct force measurement. Crafted from high-strength stainless steel, they offer easy installation and superior performance in demanding applications such as mooring lines, crane cables, and bridge support cables. With a load capacity ranging from 12,500 to 600,000 lbs and a safety factor of 4.4, these pins provide reliable and precise load measurements for various industrial needs.

Product Specifications

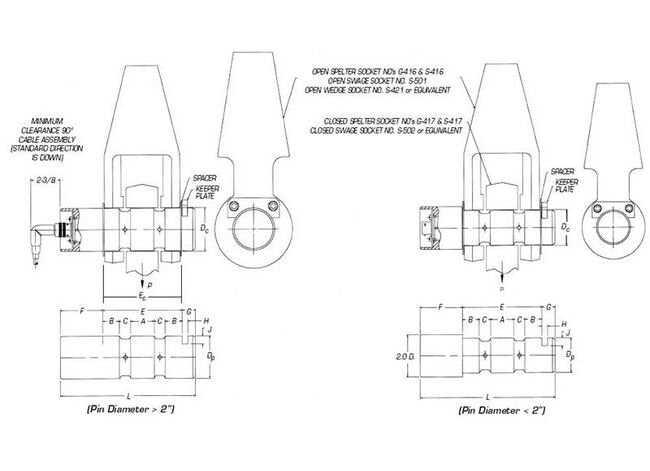

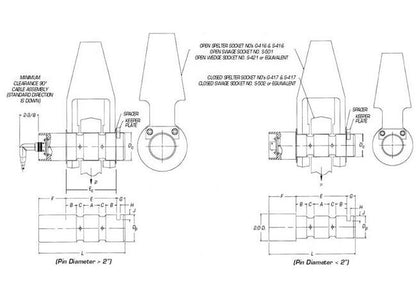

Dimensional Drawing Dimensional Drawing
SPA Clevis Pin
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PTIH-10-6P
Electrical Specifications Signal
Green
Features 0
Precison Load Sensing Rugged Internally Sealed Strain Gages Easy Installation Direct Force Measurement High Strength Stainless Steel
General Information 0
Wire Rope Load Pins are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. We offer precision force measurement by simply replacing existing wire rope load pins.The design is a double-shear arrangement. Typically, force P is applied at the center of the pin while 2 equal opposing forces of P/2 are applied at each end. Strain gages are sealed inside a small axial hole and are positioned at the 2 shear locations at the interface between the center eye and pin ends. The strain gages are positioned and oriented with great precision along the neutral plane relative to the specific direction of force. An anti-rotation device is necessary for proper reading and alignment. If a force P is applied to the pin at an angle other than the specified direction, the theoretical bridge output will be offset by a component of the force along the sensitive direction, i.e. P cos X.The four strain gages (two at each shear location) are electrically connected to form a full bridge, the signal from each gage being additive so that the bridge output is proportional to the sum of the forces transmitted by the shear planes of the pin. The circuit typically includes temperature compensation, signal trim (optional), and zero balance resistors terminating in a suitable connector socket or integral cable, and potted with a sealing compound inside the gage hole for enhanced environmental protection.Standard models include detailed calibration data up to 500,000 lbs. Higher capacity calibration data is available at an additional charge. Strainsert factory calibrations are intended to simulate installed conditions, however, it is recommended that an in-place calibration be performed to account for any installation, tolerance, and/or alignment influences affecting sensor measurement.Standard models are typically used in new applications where the designer can develop the specific load pin joint around the standard load pin dimensions, to optimize force measurement performance. In addition, the standard load pin may fit or can be incorporated through the use of bushings or modification of the assembly.Calibration data up to 500,000 lbs. Higher capacity calibration data is available at an additional charge. Inquire for custom product ranges.Applications include mooring lines, clam shells, crane cables, bridge support cables, and cable dead ends.
Performance Specs Bridge
Full bridge 350 Ohm (Nominal)
Performance Specs Excitation
12 V AC (Maximum) | 12 V DC (Maximum)
Performance Specs Hysteresis
±0.50% FS (Nominal)
Performance Specs Non Linearity
±0.50% FS (Nominal)
Performance Specs Non Repeatability
±0.15% FS (Nominal)
Performance Specs Output Signal
2-mV/V (Nominal) | 2-mV/V (Standardized Output)
Performance Specs Overload Without Failure
300% (Minimum)
Performance Specs Overload Without Zero Shift
150%
Performance Specs Service Temp Range
to 150 °F
Performance Specs Temp Effects On Output
0.008% load / °F (Nominal)
Performance Specs Temp Effects On Zero
0.005% FS / °F (Nominal)
Performance Specs Zero Balance
±2% FS (Nominal)
Specifications A Width Of Center Loading Section
2-5/16 in
Specifications B Width Of Clevis Support Section
1-3/32 in
Specifications Connector Type
Axial Connector | Permanently Attached Axial Cable
Specifications C Length Of Pin Reduced Section Instrumented Zone
11/16 in
Specifications Dp Nominal Pin Diameter
3.000 in
Specifications E Active Length Of Pin
5-7/8 in
Specifications F Clevis Pin Head Length
2 in
Specifications G Extension Of Pin For Keeper Plate Installation
7/8 in
Specifications H Width Of Keeper Plate Slot
13/32 in
Specifications J Depth Of Keeper Plate Slot
5/8 in
Specifications Keeper Plates
SPA-125-112-1-A
Specifications Load Capacity
125,000 lb
Specifications L Overall Length Of Pin
8-3/4 in
Specifications Material
Stainless Steel 17-4, H-1025 (Standard)
Specifications Safety Factor
4.4
Specifications U Nominal Spacer Thickness
1/8 in
Specifications Wire Rope Diameter
1.63 Inch
