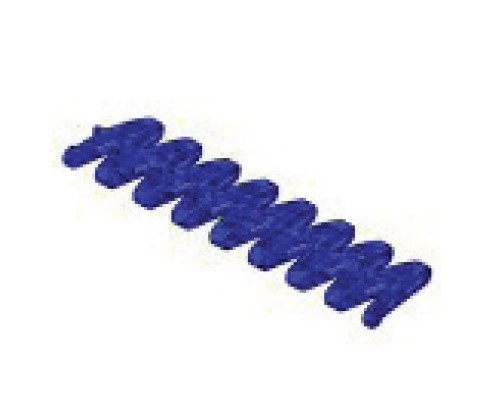

SpanTech® 50mm Acetal PillowTop Chain
SpanTech® 50mm Acetal PillowTop Chain
SKU:CHA-eccd4d
Enhance transfer efficiency and cleanliness with the SpanTech® 50mm Acetal PillowTop Chain for delicate food products and cooling applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SpanTech® 50mm Acetal PillowTop Chain
$129.99
Quantity: 1
Claim Your Seller Account
SpanTech® 50mm Acetal PillowTop Chain
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your conveyor system with the SpanTech® 50mm Acetal PillowTop Chain. Featuring a curved design that reduces chordal action, this chain is ideal for positioning transfers closely. Perfect for delicate food products like tortillas and cookies, its tight turning radius and lightweight yet durable construction ensure efficient operations. The open design enhances cleanability, making it suitable for cooling applications. Pair it with a dead plate transfer for cost-effective small product handling. Easily replace any 50mm SuperTight chain with the SpanTech® PillowTop Chain.
Product Specifications
Additional Information Additional Information
Handles the most delicate of products with ease and precision.
Chain Options Chain Options
Plain (White or Blue)Moving Side Guide (White or Blue)
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Color
Blue
Specifications Durable
50 mm PillowTop Chain is very lightweight yet very strong.
Specifications Material Options
Acetal
Specifications Pitch Size
1.97 in | 50 mm
Specifications Sanitary
The open design concept improves cleanability and makes it perfect for cooling applications.
Specifications Tight Turning Radius
50 mm PillowTop chain has one of the tighter turning radii that Span Tech offers.
What Is Chordal Action What Is Chordal Action
The rising and lowering of an individual chain link as it enters a sprocket is known as chordal action. The reason it happens is simply due to geometry. When a chain is "wrapped" around a sprocket, the pins of the chain form a polygon shape. When you look at this polygon shape traveling around a sprocket, it is bumpy - not smooth. When a conveyor chain enters a drive sprocket, it goes from a flat line to this polygon shape and results in a rise/lowering of the pin. This effect can be lessened only by using a smaller pitch chain, or increasing the sprocket size - it cannot be prevented. That being said, depending on the elevation of the chain (in relation to the sprocket), we can control whether the chain "rises" or "lowers" to match this polygon shape.
