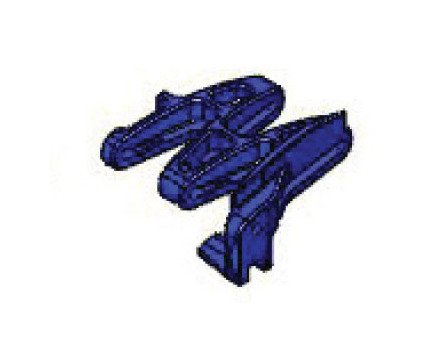

SpanTech® 50mm Blue PillowTop Chain with 6mm Moving Side Guide (Right Hand)
SpanTech® 50mm Blue PillowTop Chain with 6mm Moving Side Guide (Right Hand)
SKU:CHA-08e0d8
Upgrade to SpanTech® 50mm Blue PillowTop Chain for precise and cost-effective product transfers.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
SpanTech® 50mm Blue PillowTop Chain with 6mm Moving Side Guide (Right Hand)
$189.99
Quantity: 1
Claim Your Seller Account
SpanTech® 50mm Blue PillowTop Chain with 6mm Moving Side Guide (Right Hand)
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SpanTech® 50mm Blue PillowTop Chain with a 6mm Moving Side Guide (Right Hand) offers a unique curved design that minimizes chordal action, allowing for precise transfers close to the chain. Ideal for delicate food products like tortillas and cookies, it provides a cost-effective solution when paired with dead plate transfers. This lightweight yet durable chain features a tight turning radius, easy cleanability, and can replace any 50mm SuperTight chain, making it perfect for food industries and cooling applications.
Product Specifications
Additional Information Additional Information
Handles the most delicate of products with ease and precision.
Chain Options Chain Options
Plain (White or Blue)Moving Side Guide (White or Blue)
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Color
Blue
Specifications Durable
50 mm PillowTop Chain is very lightweight yet very strong.
Specifications Material Options
Acetal
Specifications Moving Direction
Right Hand
Specifications Moving Side Guide Size
6 mm
Specifications Pitch Size
1.97 in | 50 mm
Specifications Sanitary
The open design concept improves cleanability and makes it perfect for cooling applications.
Specifications Tight Turning Radius
50 mm PillowTop chain has one of the tighter turning radii that Span Tech offers.
What Is Chordal Action What Is Chordal Action
The rising and lowering of an individual chain link as it enters a sprocket is known as chordal action. The reason it happens is simply due to geometry. When a chain is "wrapped" around a sprocket, the pins of the chain form a polygon shape. When you look at this polygon shape traveling around a sprocket, it is bumpy - not smooth. When a conveyor chain enters a drive sprocket, it goes from a flat line to this polygon shape and results in a rise/lowering of the pin. This effect can be lessened only by using a smaller pitch chain, or increasing the sprocket size - it cannot be prevented. That being said, depending on the elevation of the chain (in relation to the sprocket), we can control whether the chain "rises" or "lowers" to match this polygon shape.
