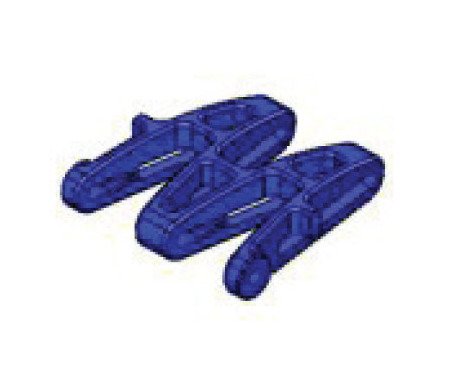

The SpanTech® 50mm Blue PillowTop Link Chain features a unique curved design that minimizes chordal action, allowing for precision transfers close to the chain. Ideal for delicate food products like tortillas and cookies, its seamless integration with dead plate transfers offers a cost-effective solution for small item conveyance. Crafted from durable Acetal material, this chain ensures strength and reliability while the sanitary open design enhances cleanability, perfect for cooling applications. With its tight turning radius, lightweight construction, and exceptional adaptability, this PillowTop chain surpasses industry standards.
Product Specifications
Additional Information Additional Information
Handles the most delicate of products with ease and precision.
Chain Options Chain Options
Plain (White or Blue)Moving Side Guide (White or Blue)
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Color
Blue
Specifications Durable
50 mm PillowTop Chain is very lightweight yet very strong.
Specifications Material Options
Acetal
Specifications Pitch Size
1.97 in | 50 mm
Specifications Sanitary
The open design concept improves cleanability and makes it perfect for cooling applications.
Specifications Tight Turning Radius
50 mm PillowTop chain has one of the tighter turning radii that Span Tech offers.

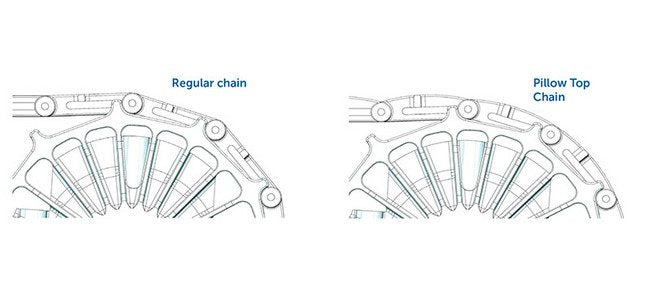

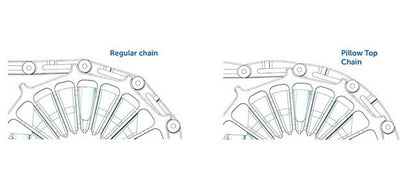

What Is Chordal Action What Is Chordal Action
The rising and lowering of an individual chain link as it enters a sprocket is known as chordal action. The reason it happens is simply due to geometry. When a chain is "wrapped" around a sprocket, the pins of the chain form a polygon shape. When you look at this polygon shape traveling around a sprocket, it is bumpy - not smooth. When a conveyor chain enters a drive sprocket, it goes from a flat line to this polygon shape and results in a rise/lowering of the pin. This effect can be lessened only by using a smaller pitch chain, or increasing the sprocket size - it cannot be prevented. That being said, depending on the elevation of the chain (in relation to the sprocket), we can control whether the chain "rises" or "lowers" to match this polygon shape.
