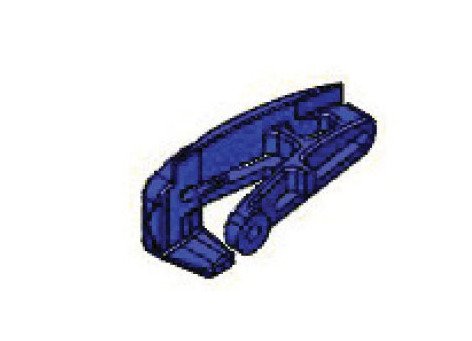

SpanTech® 50mm Blue PillowTop Link Chain with 6mm Left Hand Side Guide
SpanTech® 50mm Blue PillowTop Link Chain with 6mm Left Hand Side Guide
SKU:CHA-25edb9
Enhance efficiency in food industries with SpanTech® 50mm Blue PillowTop chain & 6mm left-hand guide.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SpanTech® 50mm Blue PillowTop Link Chain with 6mm Left Hand Side Guide
$89.99
Quantity: 1
Claim Your Seller Account
SpanTech® 50mm Blue PillowTop Link Chain with 6mm Left Hand Side Guide
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your conveyor system with the SpanTech® 50mm PillowTop chain featuring a 6mm left-hand side guide. Designed for food industries, this chain offers a curved design that minimizes chordal action for precise product transfers. With a tight turning radius and durable Acetal material construction, this chain ensures efficient and sanitary operations. Easily replace SuperTight chains with this lightweight yet robust solution, perfect for delicate product handling.
Product Specifications
Additional Information Additional Information
Handles the most delicate of products with ease and precision.
Chain Options Chain Options
Plain (White or Blue)Moving Side Guide (White or Blue)
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Color
Blue
Specifications Durable
50 mm PillowTop Chain is very lightweight yet very strong.
Specifications Material Options
Acetal
Specifications Moving Direction
Left Hand
Specifications Moving Side Guide Size
6 mm
Specifications Pitch Size
1.97 in | 50 mm
Specifications Sanitary
The open design concept improves cleanability and makes it perfect for cooling applications.
Specifications Tight Turning Radius
50 mm PillowTop chain has one of the tighter turning radii that Span Tech offers.
What Is Chordal Action What Is Chordal Action
The rising and lowering of an individual chain link as it enters a sprocket is known as chordal action. The reason it happens is simply due to geometry. When a chain is "wrapped" around a sprocket, the pins of the chain form a polygon shape. When you look at this polygon shape traveling around a sprocket, it is bumpy - not smooth. When a conveyor chain enters a drive sprocket, it goes from a flat line to this polygon shape and results in a rise/lowering of the pin. This effect can be lessened only by using a smaller pitch chain, or increasing the sprocket size - it cannot be prevented. That being said, depending on the elevation of the chain (in relation to the sprocket), we can control whether the chain "rises" or "lowers" to match this polygon shape.
