SpanTech® 7.31 Inch Chain Width 10 Feet Offset Wedge Conveyor
SpanTech® 7.31 Inch Chain Width 10 Feet Offset Wedge Conveyor
SKU:CON-285f89
Experience seamless vertical movement with the SpanTech® Wedge Conveyor for reliable elevation change. Dynamic load capacity, adjustable units, and impressive elevation up to 30 ft make it a top choice.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
SpanTech® 7.31 Inch Chain Width 10 Feet Offset Wedge Conveyor
$2,499.99
Quantity: 1
Claim Your Seller Account
SpanTech® 7.31 Inch Chain Width 10 Feet Offset Wedge Conveyor
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

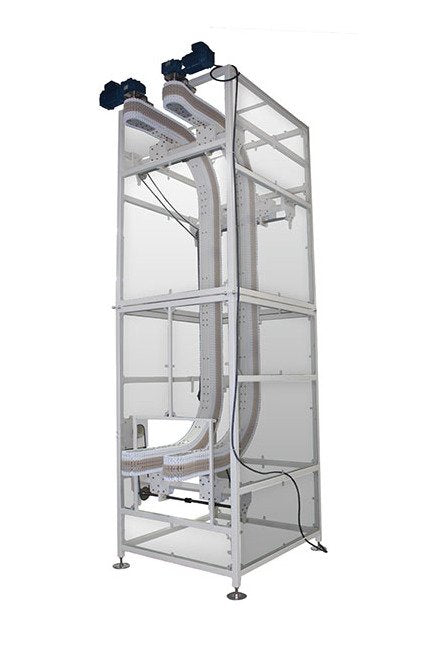

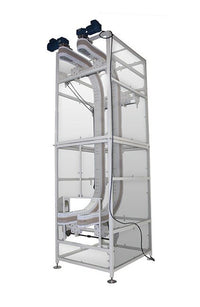

The SpanTech® Wedge Conveyor offers seamless vertical movement with a compact, all-mechanical design, ensuring unparalleled reliability in elevation change applications. Engineered for efficiency, this conveyor boasts a dynamic load capacity of up to 92 lbs at 50 feet per minute, accommodating a wide range of rigid products. With advanced options for adjustable units and impressive elevation capabilities up to 30 ft, this conveyor delivers optimal performance without the need for expensive controls. Compliant with industry standards and offering versatile chain width options, the SpanTech® Wedge Conveyor is a top-tier solution for both consumer and institutional requirements.
Product Specifications
Rules Of Thumb For Wedge Units Rules Of Thumb For Wedge Units
Wedge conveyors must be equipped with a variable frequency drive (VFD) with soft start/stop capability. The VFD can be customer supplied or provided by Span Tech.If your incoming product does not meet the minimum gap requirements, you may increase the velocity of the Wedge Unit to pull the needed gap. Use the basic formula below to find the necessary velocity of the Wedge Unit.Vw = Vo (L + Gapmin / L + Gapi )Vw = Desired velocity of Wedge unit (FPM)Vo = Initial velocity of incoming conveyor (FPM)Gapmin = minimum gap requiredGapi = initial product gapStandard Chain Widths/Center Line Radius:6.13 - 21 in.7.31 - 22.81 in.8.49 - 26.49 in.9.67 - 30.45 in.10.85 - 33.85 in.Recommended Product Height Restrictions:6.13 - 2.0 - 6.9 in.7.31 - 7.0 - 11.9 in.8.49 - 12.0 - 16.9 in.9.67 - 17.0 - 21.9 in.10.85 - 22.0 - 24.0 in.The spacing between products (gap) is critical to the layout of the Wedge Unit. If the gap is too small, products could contact and interfere with each other through the curves. Use the following formula to determine the minimum gap for your product.Gapmin = (L+1) /(2R/H) -1R=Radius of Curve (referenced above)H=Height of productL=Length of productGapmin=Minimum gap required for your product
Specifications Chain Width
7.31 in
Specifications Dynamic Load Capacity At 100 Feet Per Minute Fpm
38 lb
Specifications Dynamic Load Capacity At 150 Feet Per Minute Fpm
20 lb
Specifications Dynamic Load Capacity At 180 Feet Per Minute Fpm
24 lb
Specifications Dynamic Load Capacity At 50 Feet Per Minute Fpm
92 lb
Specifications Handles Most Rigid Products
Available in a wide variety of chain types and widths to accommodate a large array of products.
Specifications Impressive Elevation
Up to 30 ft
Specifications Maximum Speed
180 ft/min | 55 m/min
Specifications Minimum Infeed Elevation
26 in
Specifications Offset Size
10 ft
Specifications Overall Width For 0 To 12 Inch In Adjustable Unit
48.4 in
Specifications Overall Width For 0 To 24 Inch In Adjustable Unit
60.4 in
Specifications Overall Width For Positionable Units
39.1 in
Specifications Small Footprint
The Wedge Unit has an extremely small footprint compared to elevation change.
Specifications Technology Not Required
No expensive controls are needed to operate the Wedge Unit.
Specifications Version Options
You have the choice of a positionable or fully adjustable unit (which can be motor driven).
