SpanTech® Right Hand Blue PillowTop 50mm Pitch Chain
SpanTech® Right Hand Blue PillowTop 50mm Pitch Chain
SKU:CHA-cf1b20
High-performance 50mm Pitch PillowTop Chain for precise, sanitary transfers in food industries.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SpanTech® Right Hand Blue PillowTop 50mm Pitch Chain
$129.99
Quantity: 1
Claim Your Seller Account
SpanTech® Right Hand Blue PillowTop 50mm Pitch Chain
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

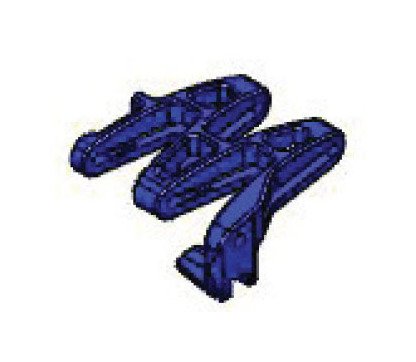

The SpanTech® Right Hand Blue PillowTop Link Chain with a 50mm pitch size features a curved design that reduces chordal action, ideal for precise transfers in food industries like handling tortillas and cookies. This durable and lightweight acetal chain offers a tight turning radius, making it suitable for delicate product transfers. With open design for easy cleaning, this chain is perfect for cooling applications, offering superior strength and versatility.
Product Specifications
Additional Information Additional Information
Handles the most delicate of products with ease and precision.
Chain Options Chain Options
Plain (White or Blue)Moving Side Guide (White or Blue)
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Color
Blue
Specifications Durable
50 mm PillowTop Chain is very lightweight yet very strong.
Specifications Material Options
Acetal
Specifications Moving Direction
Right Hand
Specifications Pitch Size
1.97 in | 50 mm
Specifications Sanitary
The open design concept improves cleanability and makes it perfect for cooling applications.
Specifications Tight Turning Radius
50 mm PillowTop chain has one of the tighter turning radii that Span Tech offers.
What Is Chordal Action What Is Chordal Action
The rising and lowering of an individual chain link as it enters a sprocket is known as chordal action. The reason it happens is simply due to geometry. When a chain is "wrapped" around a sprocket, the pins of the chain form a polygon shape. When you look at this polygon shape traveling around a sprocket, it is bumpy - not smooth. When a conveyor chain enters a drive sprocket, it goes from a flat line to this polygon shape and results in a rise/lowering of the pin. This effect can be lessened only by using a smaller pitch chain, or increasing the sprocket size - it cannot be prevented. That being said, depending on the elevation of the chain (in relation to the sprocket), we can control whether the chain "rises" or "lowers" to match this polygon shape.
