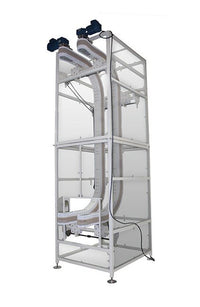

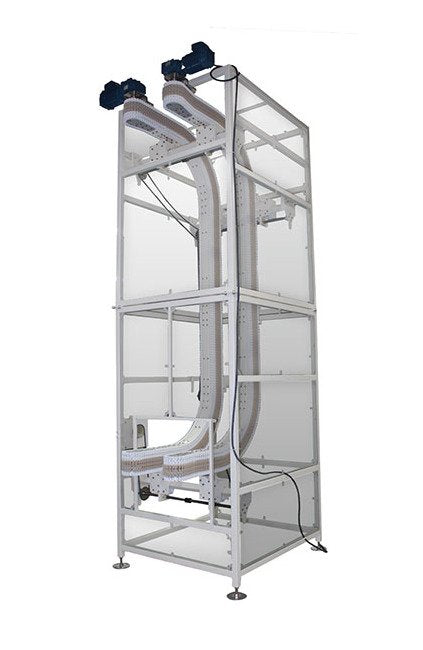

SpanTech 10.85in Chain Width 20ft Offset Wedge Conveyor
SpanTech 10.85in Chain Width 20ft Offset Wedge Conveyor
SKU:CON-6e7d2d
Experience efficiency and reliability with SpanTech's Wedge Conveyor for seamless vertical movement. Optimal for various product loads.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
SpanTech 10.85in Chain Width 20ft Offset Wedge Conveyor
$1,899.99
Quantity: 1
Claim Your Seller Account
SpanTech 10.85in Chain Width 20ft Offset Wedge Conveyor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SpanTech 10.85-inch Chain Width and 20 Feet Offset Wedge Conveyor provide efficient vertical movement in a compact, mechanically reliable design. With a maximum speed of 180 ft/min, it offers impressive elevation capabilities of up to 30 ft. This versatile conveyor can handle a dynamic load capacity ranging from 15 to 140 lbs at various speeds. Choose between positionable or fully adjustable units to suit your specific needs, all without the need for costly technology controls. Compliant with industry standards for durability and performance, this conveyor is a reliable solution for both consumer and institutional buyers.
Product Specifications
Rules Of Thumb For Wedge Units Rules Of Thumb For Wedge Units
Wedge conveyors must be equipped with a variable frequency drive (VFD) with soft start/stop capability. The VFD can be customer supplied or provided by Span Tech.If your incoming product does not meet the minimum gap requirements, you may increase the velocity of the Wedge Unit to pull the needed gap. Use the basic formula below to find the necessary velocity of the Wedge Unit.Vw = Vo (L + Gapmin / L + Gapi )Vw = Desired velocity of Wedge unit (FPM)Vo = Initial velocity of incoming conveyor (FPM)Gapmin = minimum gap requiredGapi = initial product gapStandard Chain Widths/Center Line Radius:6.13 - 21 in.7.31 - 22.81 in.8.49 - 26.49 in.9.67 - 30.45 in.10.85 - 33.85 in.Recommended Product Height Restrictions:6.13 - 2.0 - 6.9 in.7.31 - 7.0 - 11.9 in.8.49 - 12.0 - 16.9 in.9.67 - 17.0 - 21.9 in.10.85 - 22.0 - 24.0 in.The spacing between products (gap) is critical to the layout of the Wedge Unit. If the gap is too small, products could contact and interfere with each other through the curves. Use the following formula to determine the minimum gap for your product.Gapmin = (L+1) /(2R/H) -1R=Radius of Curve (referenced above)H=Height of productL=Length of productGapmin=Minimum gap required for your product
Specifications Chain Width
10.85 in
Specifications Dynamic Load Capacity At 100 Feet Per Minute Fpm
52 lb
Specifications Dynamic Load Capacity At 150 Feet Per Minute Fpm
23 lb
Specifications Dynamic Load Capacity At 180 Feet Per Minute Fpm
15 lb
Specifications Dynamic Load Capacity At 50 Feet Per Minute Fpm
140 lb
Specifications Handles Most Rigid Products
Available in a wide variety of chain types and widths to accommodate a large array of products.
Specifications Impressive Elevation
Up to 30 ft
Specifications Maximum Speed
180 ft/min | 55 m/min
Specifications Minimum Infeed Elevation
26 in
Specifications Offset Size
20 ft
Specifications Overall Width For 0 To 12 Inch In Adjustable Unit
48.4 in
Specifications Overall Width For 0 To 24 Inch In Adjustable Unit
60.4 in
Specifications Overall Width For Positionable Units
39.1 in
Specifications Small Footprint
The Wedge Unit has an extremely small footprint compared to elevation change.
Specifications Technology Not Required
No expensive controls are needed to operate the Wedge Unit.
Specifications Version Options
You have the choice of a positionable or fully adjustable unit (which can be motor driven).
